Servo Motor & Accessories
Showing all 9 results
-
Motor Accessories, Motor Drivers, Motors , Drivers & Actuators, Servo Motor & Accessories
BO Motor dual shaft 150 RPM – Straight
-46%
Motor Accessories, Motor Drivers, Motors , Drivers & Actuators, Servo Motor & AccessoriesBO Motor dual shaft 150 RPM – Straight
Quick Overview:
- Low density: lightweight, low inertia.
Capability to absorb shock and vibration as a result of elastic compliance. - Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Operating Voltage(VDC): 3~12
- Shaft Length (mm): 8.5
- Shaft Diameter (mm): 5.5 (Double D-type)
- No Load Current: 40-180mA.
- Rated Speed(After Reduction): 150 RPM
- Rated Torque: 0.35 Kgcm
SKU: n/a - Low density: lightweight, low inertia.
-
Motors , Drivers & Actuators, Servo Motor & Accessories

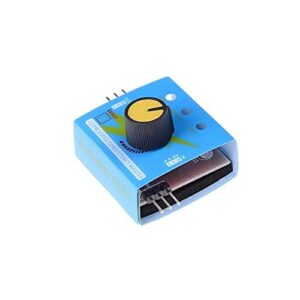

Digital Multi Servo Tester-For ESC And Servo Testing-With 3 Operation Modes-LED Indicators AB0226
-52%
Motors , Drivers & Actuators, Servo Motor & AccessoriesDigital Multi Servo Tester-For ESC And Servo Testing-With 3 Operation Modes-LED Indicators AB0226
Features:
- Easy testing and control of servo motors and ESCs
- Supports multiple operating modes
- Compact and lightweight design
- Compatible with analog and digital servos
- No transmitter or receiver required
- Adjustable output signal using onboard potentiometer
- Stable and reliable performance
- Suitable for robotics and RC hobby applications
Modes of Operation:
- Manual Mode: Rotate servo manually using the control knob
- Neutral Mode: Automatically centers the servo at 90°
- Automatic Mode: Servo sweeps continuously across its range
Specifications:
- Operating Voltage: 4.8V to 6V DC
- Compatible Devices: Servo Motors & ESCs
- Control Signal: PWM
- Output Channels: Up to 3 Servos (depending on model)
- Interface Type: Standard 3-Pin Servo Connector
- Material: PCB with Plastic Knob
- Weight: Lightweight and portable
Applications:
- Servo motor testing
- ESC calibration
- RC airplane and drone setup
- Robotics projects
- Arduino and DIY electronics
- Servo positioning adjustment
- Hobby and educational projects
SKU: AB0226 -
Motor Accessories, Motor Drivers, Motors , Drivers & Actuators, New Arrival, Servo driver, Servo Motor & Accessories, Uncategorized
PCA9685 16-Channel 12-Bit PWM/Servo Driver I2C Interface
-58%
Motor Accessories, Motor Drivers, Motors , Drivers & Actuators, New Arrival, Servo driver, Servo Motor & Accessories, UncategorizedPCA9685 16-Channel 12-Bit PWM/Servo Driver I2C Interface
Quick Overview
- Adjustable frequency PWM up to about 1.6 KHz
- 12-bit resolution for each output – for servos, that means about 4us resolution at a 60Hz update rate
- Configurable push-pull or an open-drain output
- The output enable pin to quickly disable all the outputs
- Terminal block for power input
- Reverse polarity protection on the terminal block input
- Green power-good LED
SKU: n/a -
DC Motors, Motors , Drivers & Actuators, Servo Motor & Accessories

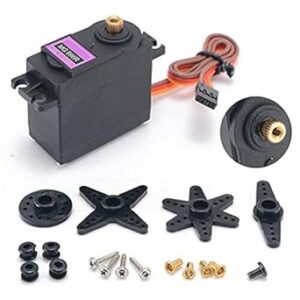

Servo MG996 13KG 180 degree high quality
-39%
DC Motors, Motors , Drivers & Actuators, Servo Motor & AccessoriesServo MG996 13KG 180 degree high quality
Specification:
No Load Running Speed: 0.17sec/60degree at 4.8V, 0.14sec/60degree at 6.0V
Gear/ Case Type: metal/ plastic
nterface Type: compatible with JR & Futaba interface
Storage Temperature: 0Celsius Degree-55Celsius Degree
Dead band width: ≤5us
Operating Voltage: 4.8-7.2V
Servo Cable Length: 300mmSKU: n/a -
Motor Drivers, Motors , Drivers & Actuators, Servo driver, Servo Motor & Accessories

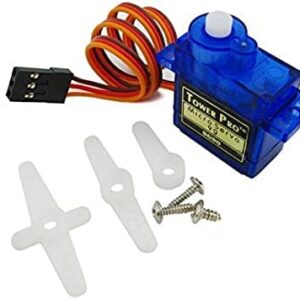

SG90 9G Mini Servo ( 360 Degree Continuous Rotation Modifiable )
-67%
Motor Drivers, Motors , Drivers & Actuators, Servo driver, Servo Motor & AccessoriesSG90 9G Mini Servo ( 360 Degree Continuous Rotation Modifiable )
Features:- High resolution.
- Accurate positioning
- Fast control response.
- Constant torque throughout the servo travel range.
- Excellent holding power.
- Weight: 9gm.
- Dimension 23*12.2*29mm.
- Stall torque 1.8kg/cm (4.8V)
- Operating speed: 0.1sec/60degree (4.8v).
- Operating voltage: 4.8V.
SKU: n/a -
Motors , Drivers & Actuators, Servo Motor & Accessories

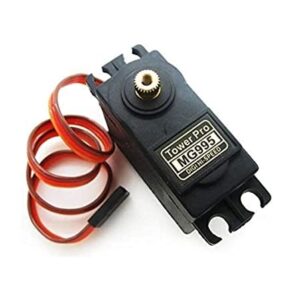

TowerPro MG995 Metal Gear Servo Motor (180° Rotation)
-41%
Motors , Drivers & Actuators, Servo Motor & AccessoriesTowerPro MG995 Metal Gear Servo Motor (180° Rotation)
Specifications:
Model MG995 Weight (g): 55 Operating Voltage (VDC) 4.8 ~ 7.2 Operating Speed @4.8V 20sec/60° Operating Speed @6.6V 16sec/60° Stall Torque @ 4.8V (Kg-Cm) 10 Stall Torque @6.6V (Kg-Cm) 12 Operating Temperature (°C) -30 to 60 Dead Band Width ( μs) 1 Gear Type Metal Rotational Degree 180º Servo Plug JR Cable Length (cm) 30 Length (mm): 40.5 Width (mm): 20 Height (mm): 44 SKU: AB0207 -
Motors , Drivers & Actuators, Servo Motor & Accessories
TowerPro SG90 180 Degree Rotation Servo Motor
-51%
Motors , Drivers & Actuators, Servo Motor & AccessoriesTowerPro SG90 180 Degree Rotation Servo Motor
Spcification :
Item Type: TowerPro Servo Motor Model Series: SG Series Rotation (Degree): 180 Torque Rating (kg-cm): 1.2 to 1.6 Model No.: SG90 Operating Voltage (VDC): 3.0 ~ 7.2 Operating Speed @4.8V 0.10sec/60° Stall Torque @ 4.8V (Kg-Cm) 1.2 Stall Torque @6.6V (Kg-Cm) 1.6 Operating Temperature (°C): -30 to 60 Gear Type Glass Fiber Servo Plug Type JR Cable Length (cm): 25 Length (mm): 32 Width (mm): 12 Height (mm): 31 Weight (g): 9 SKU: n/a
