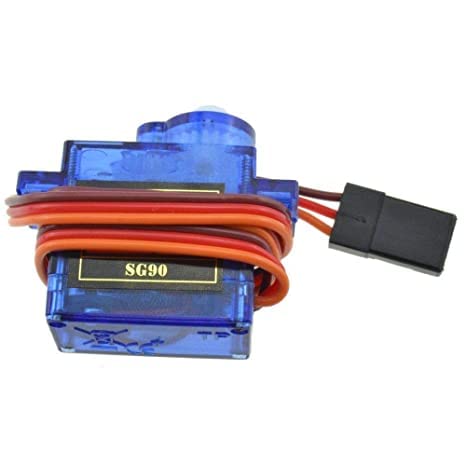

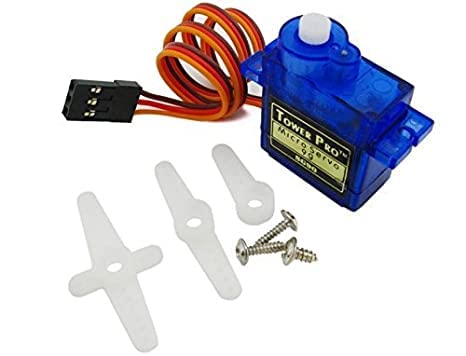

TowerPro SG90 180 Degree Rotation Servo Motor
SKU:Spcification :
| Item Type: | TowerPro Servo Motor |
|---|---|
| Model Series: | SG Series |
| Rotation (Degree): | 180 |
| Torque Rating (kg-cm): | 1.2 to 1.6 |
| Model No.: | SG90 |
| Operating Voltage (VDC): | 3.0 ~ 7.2 |
| Operating Speed @4.8V | 0.10sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) | 1.2 |
| Stall Torque @6.6V (Kg-Cm) | 1.6 |
| Operating Temperature (°C): | -30 to 60 |
| Gear Type | Glass Fiber |
| Servo Plug Type | JR |
| Cable Length (cm): | 25 |
| Length (mm): | 32 |
| Width (mm): | 12 |
| Height (mm): | 31 |
| Weight (g): | 9 |
₹97.94 ₹200.00
Introducing the TowerPro SG90 180 Degree Rotation Servo Motor, a compact and versatile solution for precise motion control across various applications.
This servo motor offers a 180° rotation capability, making it perfect for projects that require accurate positioning. Its advanced internal circuitry processes PWM signals swiftly and precisely, ensuring smooth and responsive operation.
Designed with carbon fiber gears, the TowerPro SG90 is both durable and lightweight, making it ideal for applications where minimizing weight is crucial without sacrificing performance.
Features:
- High resolution for precise motion control
- Accurate positioning to meet specific project requirements
- Fast control response for smooth operation
- Constant torque throughout the servo travel range for consistent performance
- Excellent holding power to maintain position even under external forces

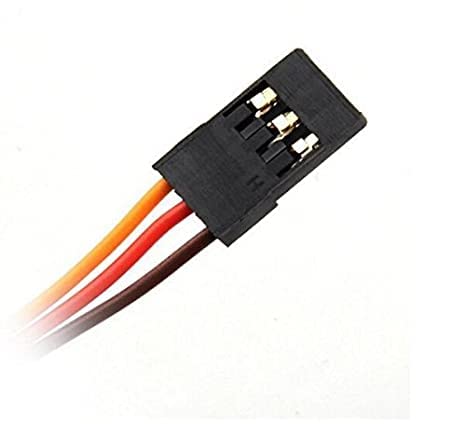

Wire Description
- Red – Positive
- Brown – Negative
- Orange – Signal
| Weight | 0.5 kg |
|---|---|
| Dimensions | 18 × 11 × 7 cm |
