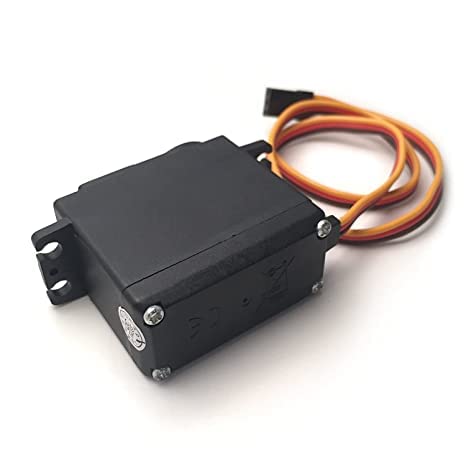

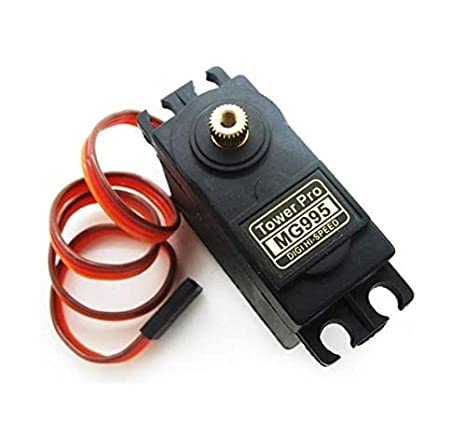

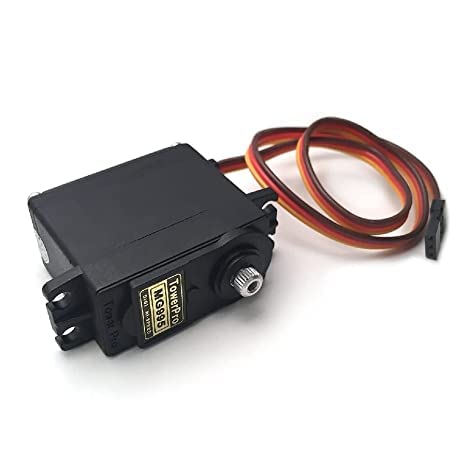

MG995 Servo Motor AB0207

Features

• High-torque servo motor with durable metal gears.
• Suitable for heavy-load and high-performance applications.
• Standard PWM control interface.
• Fast response and precise positioning.
• Double ball-bearing design for smooth operation.
• Compatible with Arduino, ESP32, Raspberry Pi, STM32, and RC receivers.
• Strong impact resistance and long service life.

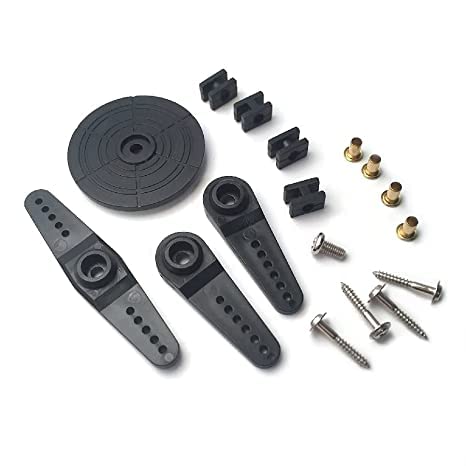

• Easy installation with included servo horns and mounting hardware.

Specifications

• Model: MG995
• Gear Type: Metal Gear
• Operating Voltage: 4.8V – 7.2V DC
• Stall Torque:
  • 9.4 kg·cm @ 4.8V
  • 11 kg·cm @ 6V
• Operating Speed:
  • 0.20 sec/60° @ 4.8V
  • 0.16 sec/60° @ 6V
• Rotation Angle: Approximately 180°
• Control Signal: PWM (Pulse Width Modulation)
• Connector Type: Standard 3-Pin Servo Connector
• Bearing Type: Dual Ball Bearing
• Weight: Approximately 55g

Applications

• Robotic Arms
• Humanoid Robots
• RC Cars, Boats, and Aircraft
• Pan-Tilt Camera Systems
• Industrial Automation Projects
• Smart Mechanical Systems
• Educational Robotics
• Arduino and IoT Projects
