Electronic Modules
Showing 49–72 of 111 results
-
Display Modules
IIC/I2C Serial Interface Adapter Module For 16×2 (1602) Character Alphanumeric LCD Display – Pack Of 1 AB0080
-65%
Display ModulesIIC/I2C Serial Interface Adapter Module For 16×2 (1602) Character Alphanumeric LCD Display – Pack Of 1 AB0080
Specifications
- Interface: I2C (SDA, SCL)
- Operating Voltage: 5V DC
- Controller IC: PCF8574
- Compatible LCDs: 16×2, 20×4 (HD44780-based)
- Adjustable Contrast: Yes
- I2C Address: Configurable via address jumpers
- Communication Speed: Standard I2C protocol
Applications
- Arduino LCD Projects
- Home Automation Systems
- IoT Display Interfaces
- Embedded Systems
- Data Monitoring Displays
- Robotics Projects
- Industrial Control Panels
SKU: AB0080 -
Electronic Components, Electronic Modules, Sensor Mudules
L293D Motor Driver IC
- Can be used to run Two DC motors with the same IC.
- 4 microcontroller pins
- Speed and Direction control is possible
- Motor voltage Vcc2 (Vs): 4.5V to 36V
- Maximum Peak motor current: 1.2A
- Maximum Continuous Motor Current: 600mA
- Supply Voltage to Vcc1(vss): 4.5V to 7V
SKU: n/a -
DC Motors, Electronic Modules, Latest Product, Motor Accessories, Motor Drivers, Motors , Drivers & Actuators, Motors & Controllers
L298N Motor Driver Module
-39%
DC Motors, Electronic Modules, Latest Product, Motor Accessories, Motor Drivers, Motors , Drivers & Actuators, Motors & ControllersL298N Motor Driver Module
- Current Sense for each motor.
- Heatsink for better performance.
- Power-On LED indicator.
- Double H bridge Drive Chip: L298N.
- Operating Voltage(VDC): 5~35
- Peak Current (A): 2
- Continuous Current (A): 0-36mA
- No. of Channels: 2
- Over-Current Protection (A): Yes
- Thermal Protection: Yes
SKU: n/a -
Buck Boost Voltage Regulators, Electronic Modules
LM2596 DC-DC Buck Converter Step Down Module
Key Features:
- Adjustable Output: 1.25V to 37V adjustable voltage range.
- High Efficiency: Up to 90% efficiency for reduced heat and longer battery life.
- Wide Input Range: Accepts input voltages from 4V to 40V.
- Compact and Lightweight: Easy to integrate into various projects.
- Built-In Protections: Overload, short circuit, and thermal protection.
- Versatile: Perfect for powering various electronic components and devices.
SKU: n/a -
Electronic Components, Electronic Modules, Sensor Mudules
Micro SD Card Reader Module
Features
- Supports Micro SD and TF memory cards.
- SPI interface for simple and reliable communication.
- Compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and other microcontrollers.
- Onboard voltage regulation for stable operation.
- Easy integration with data logging and storage applications.
- Compact design suitable for embedded projects.
- Supports FAT16 and FAT32 file systems.
- Reliable performance for reading and writing data.
Specifications
- Module Type: Micro SD Card Reader
- Card Support: Micro SD / TF Card
- Communication Interface: SPI
- Operating Voltage: 3.3V – 5V DC
- Supported File Systems: FAT16, FAT32
- Interface Pins: VCC, GND, MISO, MOSI, SCK, CS
- Compact PCB Design
- Plug-and-Play Integration with Popular Development Boards
Applications
- Data Logging Systems
- Sensor Data Storage
- IoT and Cloud-Based Projects
- Audio and MP3 Playback Systems
- Embedded Storage Applications
- GPS Data Recording
- Security and Monitoring Systems
- Arduino and Raspberry Pi Projects
SKU: n/a -
Audio Amplifier Module, Basic Electronic Components, Transformers, Uncategorized
Mini Mp3 Player Module
-84%
Audio Amplifier Module, Basic Electronic Components, Transformers, UncategorizedMini Mp3 Player Module
- Supports sampling rates (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48
- 24-bit DAC output, dynamic range support: 90dB, SNR support: 85dB
- Fully supports FAT16, FAT32 file system
- Maximum support 32G TF card
- Support U disk to 32G, 64M bytes of NORFLASH
SKU: n/a -
Buck Boost Voltage Regulators

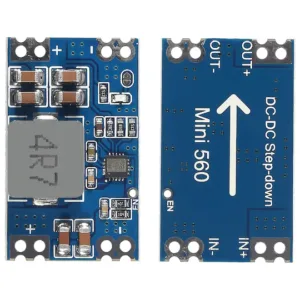

Mini560 Step Down DC-DC Converter 5A
Technical Details
- Model: MINI560
- Type: Power Module
- Power supply current: 5A
- Power supply voltage: 3.3V-12V
- Made of high-quality materials, good quality and long use time.
- Good stability, easy to use, can effectively reduce pressure.
- Different specifications meet different usage needs.
- Module size only: 29*18*5 .4mm; It is very easy to embed into various systems.
- Stamp Hole Design : Convenient for users to connect. It is also convenient for industrial use.
- High conversion efficiency and low heating.
- High efficiency/high stability/high cost performance.
- MINI 560 buck step-down module
Physical Attribute
- Material: PCB
- Size: 2.9×1.8×0.54cm
SKU: n/a -
Electronic Components, Electronic Modules, Sensor Mudules
MPU-6050 3-Axis Accelerometer and Gyro Sensor
-80%
Electronic Components, Electronic Modules, Sensor MudulesMPU-6050 3-Axis Accelerometer and Gyro Sensor
- Chip built-in 16bit AD converter, 16-bit data output.
- I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format.
- Selectable Solder Jumpers on CLK, FSYNC, and AD0.
- Digital Motion Processing™ (DMP™) engine offloads complex MotionFusion, sensor timing synchronization, and gesture detection.
- Embedded algorithms for run-time bias and compass calibration. No user intervention is required.
- Digital-output temperature sensor.
SKU: n/a -
Audio Amplifier Module, Electronic Modules, Uncategorized
MT8870 DTMF Voice Decoder Telephone
- low power device DTMF decoder chip
- integrating both the band-split filter and digital decoding functions
- Suitable for modem interfaces, mobile radios
- Onboard voice input interface
- Internal gain setting amplifier
SKU: n/a -
Bluetooth and NRF Modules, Electronic Modules, IOT & Wireless
Nrf 24l01+pa+lna SMA Antenna Wireless Transceiver Communication Module 2.4g 1100m (Pack of 1) AB0159
-37%
Bluetooth and NRF Modules, Electronic Modules, IOT & WirelessNrf 24l01+pa+lna SMA Antenna Wireless Transceiver Communication Module 2.4g 1100m (Pack of 1) AB0159
Features:
- Operates in the 2.4GHz ISM frequency band
- Built-in PA and LNA for enhanced range and signal quality
- Communication range up to 1100 meters (open area)
- External SMA antenna for improved performance
- SPI interface for easy microcontroller integration
- Low power consumption
- Compatible with Arduino, Raspberry Pi, ESP32, AVR, and STM32
Applications:
- Wireless Sensor Networks
- Remote Control Systems
- Home Automation
- Robotics Projects
- IoT Devices
- Telemetry and Data Communication
SKU: AB0159
