XL6009 DC-DC Adjustable Step-Up Boost Power Converter Module
SKU: AB0294Conversion efficiency: <94% (greater the pressure, the lower the efficiency)
Switching frequency: 400KHz
Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
Load Regulation: ± 0.5%.
Voltage Regulation: ± 0.5%
Operating Temperature: -40Â ~ 85
₹56.00 ₹110.00
XL6009 DC-DC Adjustable Step-Up Boost Power Converter Module

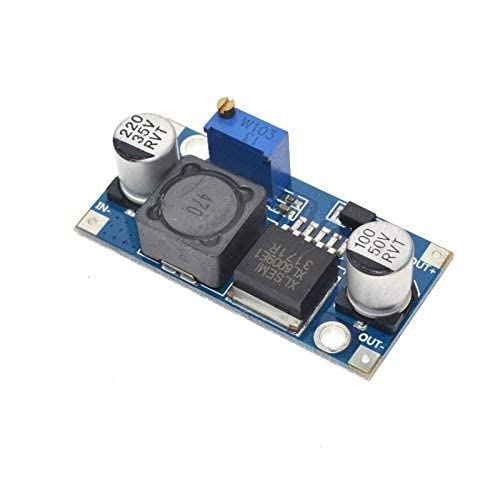

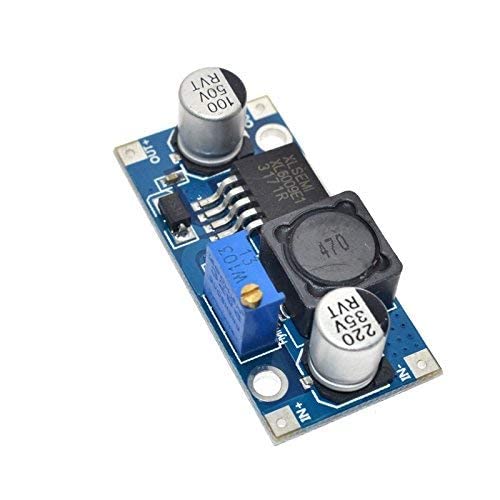

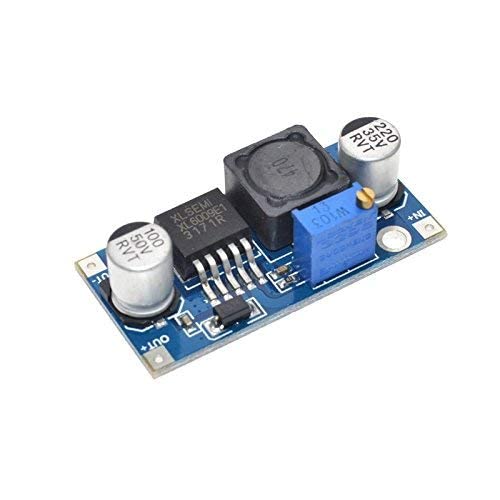

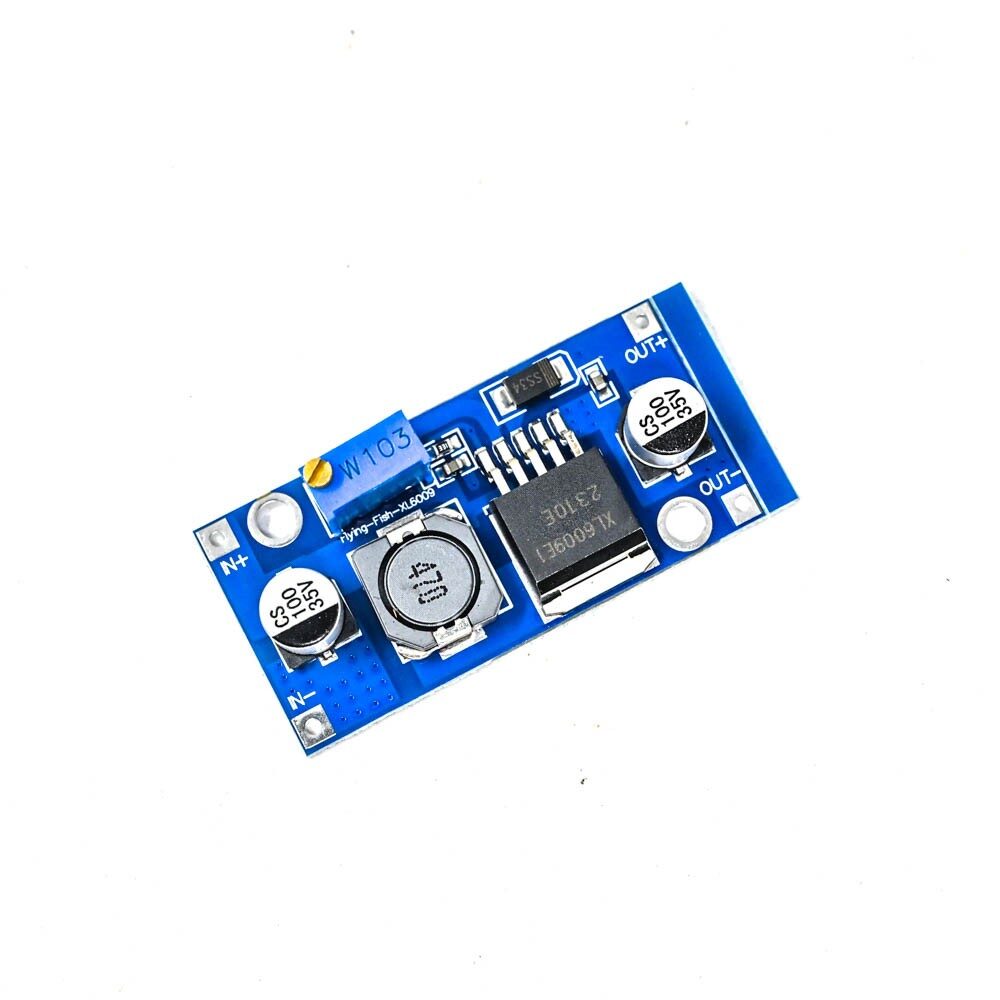

The XL6009 DC-DC Step-Up Converter, also referred to as the Ultra LM2577 Booster Circuit Board, is a non-isolated voltage converter that specializes in stepping up voltages. It features an adjustable output voltage and is known for its high efficiency.
Employing second-generation high-frequency switching technology along with the XL6009E1 core chip, this module exceeds the capabilities of the older LM2577 technology. The XL6009 boost module provides enhanced performance at a reduced cost compared to the LM2577, rendering it a favorable option for a wide range of applications.

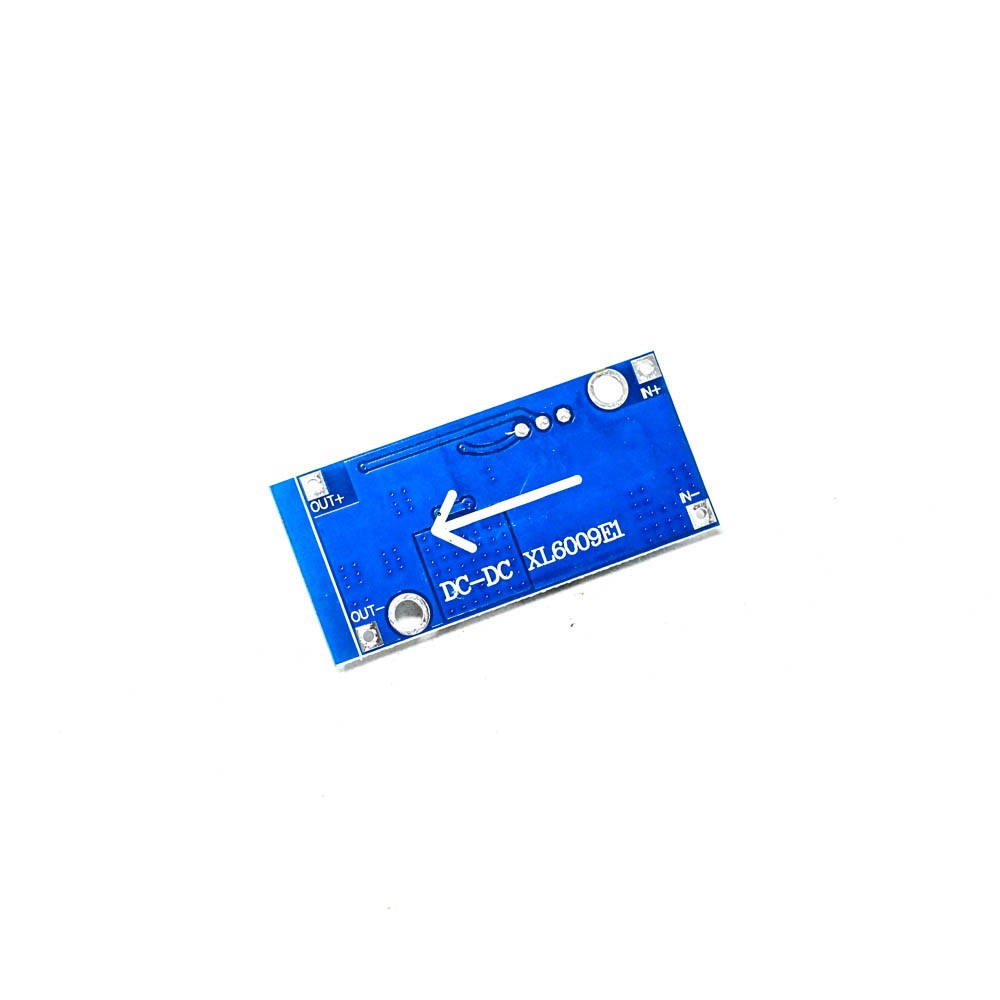

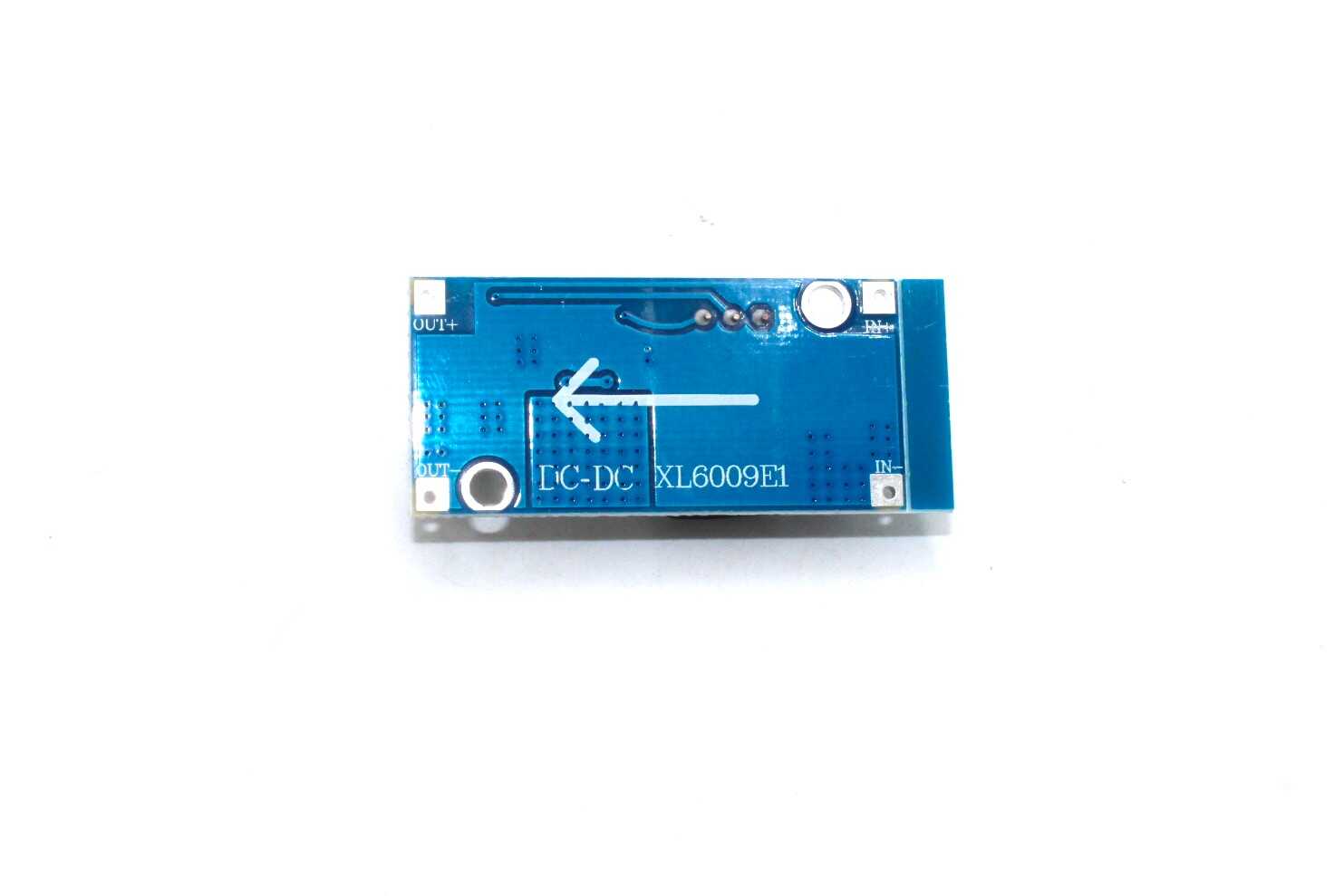

Pins
- IN+ input positive
- IN- input negative!
- OUT+ output positive
- OUT- output negative
Features:
- The performance is much higher than LM2577.
- Non-isolated Boost converter.
- It has a non-synchronous rectifier.
- Small and Handy voltage regulator module.
Specification:
| Input Voltage (V) | 3 to 32 |
|---|---|
| Input Current(A) | 4 |
| Output Voltage(V) | 5 ~ 35 |
| Output Ripple(mV) | 50 |
| Efficiency | 94% |
| Switching Frequency(KHz) | 400 |
| Load Regulation | ±0.5% |
| Voltage Regulation | ±0.5% |
| Length (mm): | 43 |
| Width (mm): | 20 |
| Height (mm): | 12 |
| Weight (g): | 12 |
| Weight | 0.35 kg |
|---|---|
| Dimensions | 12 × 10 × 5 cm |
