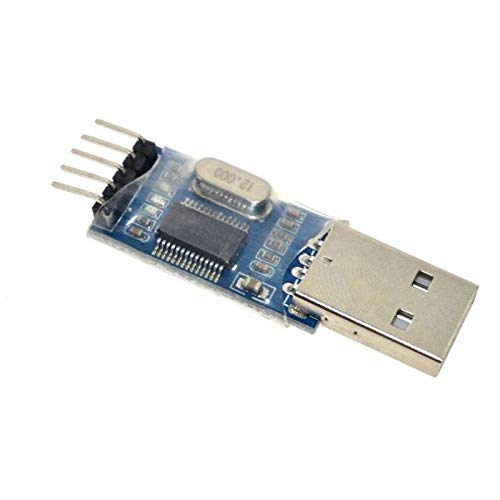

PL2303 – PL2303HX USB To TTL Serial UART Converter Module – 5 Pin

Description:

This is the PL2303HX USB to TTL (Serial) Converter Module with 5 pins. It features an imported RS232 TTL controller that provides stable performance, along with a high-speed 500mA self-recovery fuse for protection.

The module includes two data transmission indicators that allow for real-time monitoring of data transfer status. It has reserved 3.3V and 5V pin interfaces, making it easy to power different voltage systems such as DD-WRT. The entire board is covered with a high-quality transparent heat-shrinkable sleeve, ensuring insulation and protecting the PCB from potential shorts.

Applications:

• All kinds of satellite set-top box upgrade
• Router, HDD, ADSL, broadband modem firmware upgrade or cracked upgrade
• Cellphone, XBOX360, GPS serial communication, vehicle inspection and test, DVD flash and so on
• Burn writes STC MCU, NXP MCU, Renesas MCU, NEC MCU and so on
• Simple UART communication commonly used UART debugging tools in the supper terminal
• USB signal transferred to the TTL signal may be used by electronic enthusiasts

Features:

• Adopt imported controller PL2303HX, which can stabilize the flash with high speed
• 500mA self-recovery fuse for protection
• Two data transmission indicators can monitor data transfer status in real time
• Reserve 3.3V and 5V pin interface, easy for the DDWRT of different voltage system that needs power
• The entire board is coated by the high-quality transparent heat-shrinkable sleeve, making the PCB in insulation state from outside
• So that the board won’t be burnt down by material shortcut
• The electrostatic package ensures the board will not be damaged before use
• Support WIN7 system
