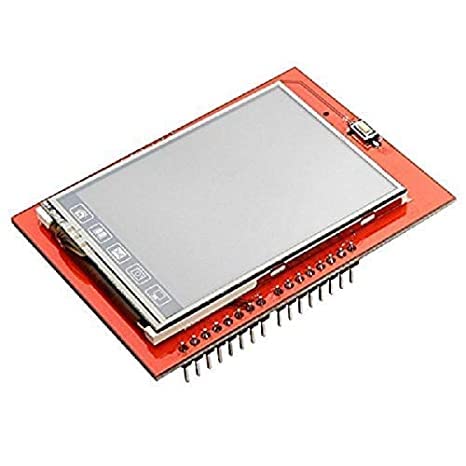

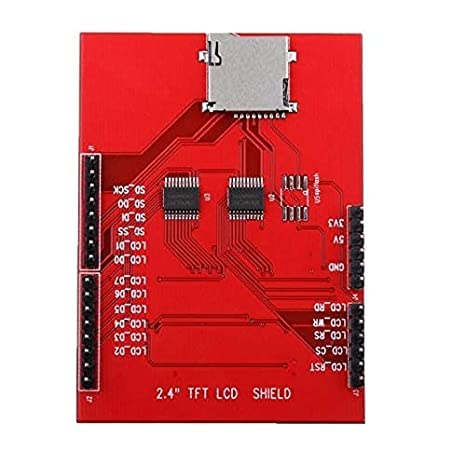

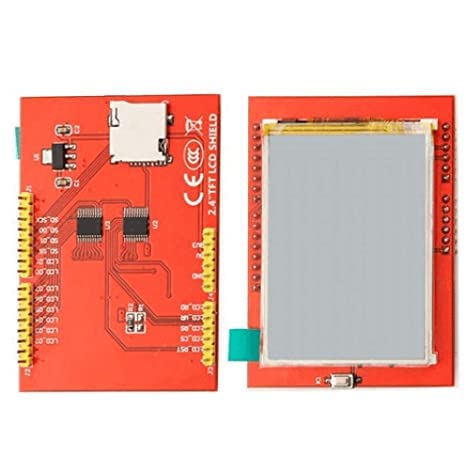

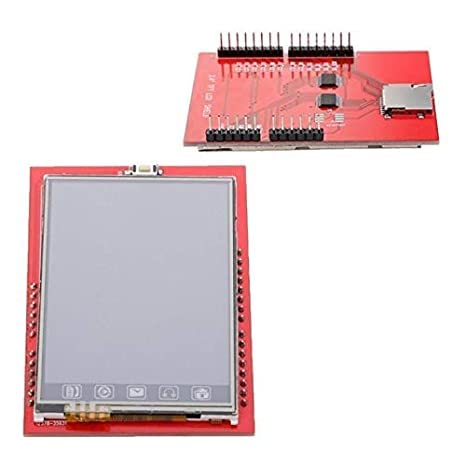

The 2.4-inch SPI Interface 240×320 Touch Screen TFT Color Display Module is a popular choice in the DIY industry. LCD displays are essential for many projects, and serial port modules are widely favored due to their minimal I/O requirements and ease of use. This 2.4-inch TFT LCD module integrates a compact design with an SPI interface, making it both efficient and simple to incorporate into various applications.
Pin Description:
SDO: Serial clock output
LED: 3.3V IO and Power Supply pin
SCL: Serial clock input
SDA / SDI: Serial data input
DC: Data / Command selection
RST: Reset, Low level active
CS: Chip Selection, Low level active
GND: Ground
VDD33: 3.3V Power Supply pin
UTFT Support
Features:
It is a 2.4inch SPI TFT LCD Screen Module
10pins interface.
Not just an LCD break but include SD card (2GB),
The LCD drive ic is ILI9341.
It’s a 240 * 320 (resolution),
2.4 inch TFT LCD screen.
The LCD has a wide viewing angle, the contrast is also very suitable.
The display interface is serial, it just needs 5 wires (CS, RS, SCL, SDA, RST) for controlling.
SDcard use hardware SPI interface (CS / MOSI / MISO / SCK), Not solder pins.
