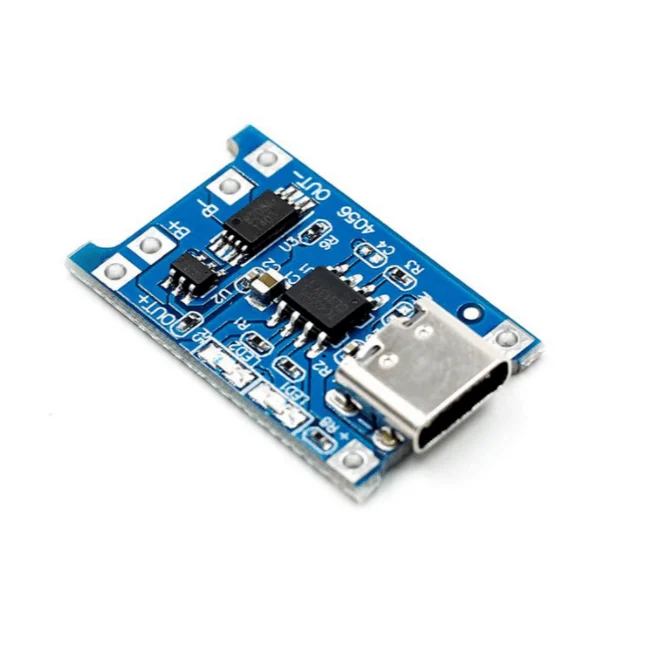

TP4056 Battery Charging Protection Module (Type C)

TP4056 Battery Charging Protection Module

The TP4056 1A Li-Ion Battery Charging Board with Type-C and Current Protection is a compact and efficient charging module designed for single-cell 3.7V lithium-ion (Li-Ion) batteries, such as 16550 cells, that lack their own built-in protection circuit. Powered by the TP4056 charging IC and the DW01 battery protection IC, this module provides a 1A charging current and automatically stops charging once the battery is fully charged.

The module also features built-in protection to safeguard the battery. If the voltage drops below 2.4V, the protection IC disconnects the load to prevent over-discharging. Additionally, the protection circuit guards against over-voltage and reverse polarity connections. In the event of incorrect wiring, the module typically sacrifices itself to protect the battery. However, always double-check your connections before use to ensure safe operation.

Using the module:

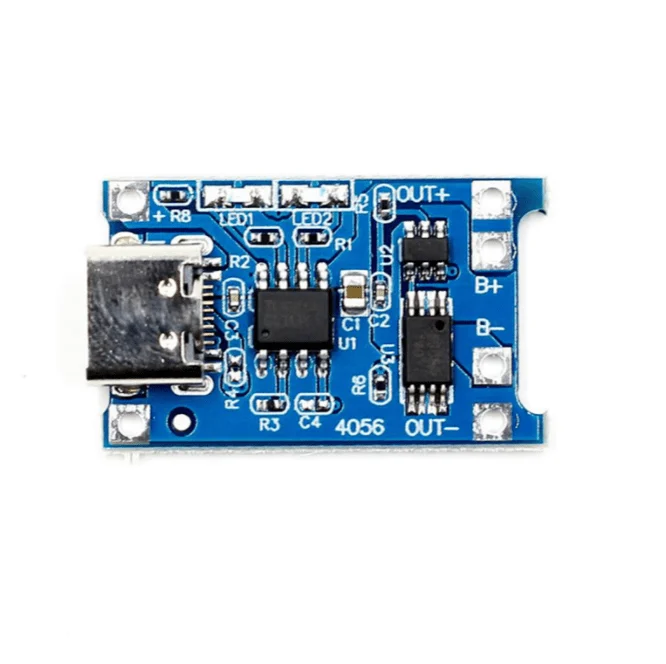

1. Connect Type C cable for power, or 5V DC to pads marked IN+ and IN- on the left-hand side of the module
2. Connect cell to charge to B+/B- pads on the right-hand side of the module.
3. A load (something for the battery to power) can be connected to the OUT+/OUT- pads on the right-hand side
4. Important! Disconnect load when charging
5. The red LED indicates charging in progress, the green LED indicates charging has finished.
6. Never charge your battery at a rate greater than 1C

Features

1. Led indicator: Red is charging Green is fully charged.
2. Current Protection: Yes
3. Inversed polarity: NO.
4. Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy.
5. Fully machinery automated processing, all patch parts manufacturing.

Specification

• Input interface: Type C
• Current Protection: Yes
• Charging mode: Linear charging.
• Current: 1A adjustable.
• Charge precision: 1.5%.
• Input voltage: 4.5V-5.5V.
• Full charge voltage: 4.2V.
