Relay Modules

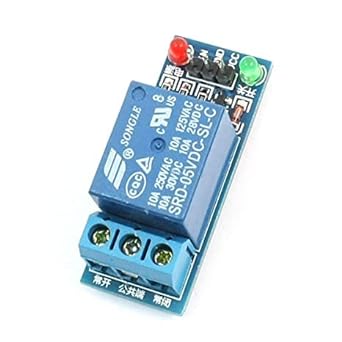

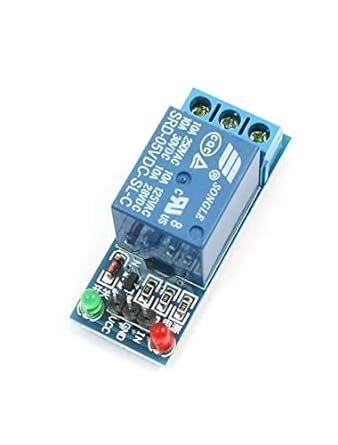

One Channel Relay Module 5V for Raspberry AVR PIC Low Level Trigger for Arduino and its compatible boards AB0189
SKU: AB0189
Availability:
1 in stock
Applications
- Home Automation Systems
- Smart Switch Projects
- Industrial Control Systems
- Security and Alarm Systems
- IoT-Based Appliance Control
- Motor and Pump Switching
- Robotics Projects
- Arduino and Raspberry Pi Automation
₹53.00 ₹90.00
1 in stock
Compare
The One Channel 5V Relay Module (AB0189) is a reliable switching module designed to control high-voltage AC or DC devices using low-voltage microcontrollers. Featuring a low-level trigger input, this module can be directly interfaced with Arduino, Raspberry Pi, AVR, PIC, ARM, ESP8266, ESP32, and other compatible development boards. It allows safe isolation between control circuits and high-power loads, making it ideal for home automation, robotics, industrial control, and IoT applications. The module includes onboard indicator LEDs and screw terminals for easy installation and operation
| Weight | 0.35 kg |
|---|---|
| Dimensions | 12 × 10 × 5 cm |
