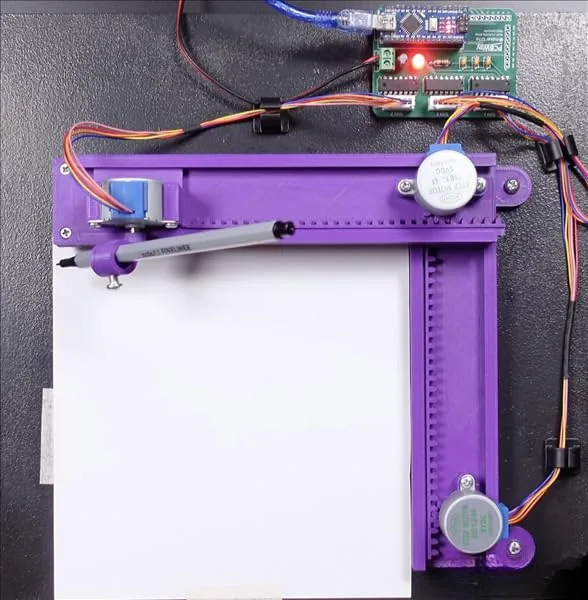

Mini CNC Plotter DIY 3D Printed Writing Machine complete kit, including 3D parts, electronic parts and nuts & bolts

Mini CNC Plotter DIY 3D Printed Writing Machine – Complete Kit

Bring your ideas to life with this Mini CNC Plotter DIY 3D Printed Writing Machine Complete Kit. Designed for students, makers, educators, and electronics enthusiasts, this kit provides everything needed to assemble a compact XY plotting machine capable of writing, drawing, and creating simple graphics with precision.

The kit includes high-quality 3D printed structural parts, essential electronic components, and all required nuts and bolts for assembly. Once assembled, the plotter can be programmed using compatible open-source CNC software and controlled through a microcontroller, making it an excellent platform for learning CNC fundamentals, motion control, G-code programming, and automation.

Ideal for engineering projects, STEM education, science exhibitions, and DIY robotics, this compact CNC plotter offers an engaging hands-on learning experience.

Key Features

• Complete DIY Mini CNC Plotter Kit

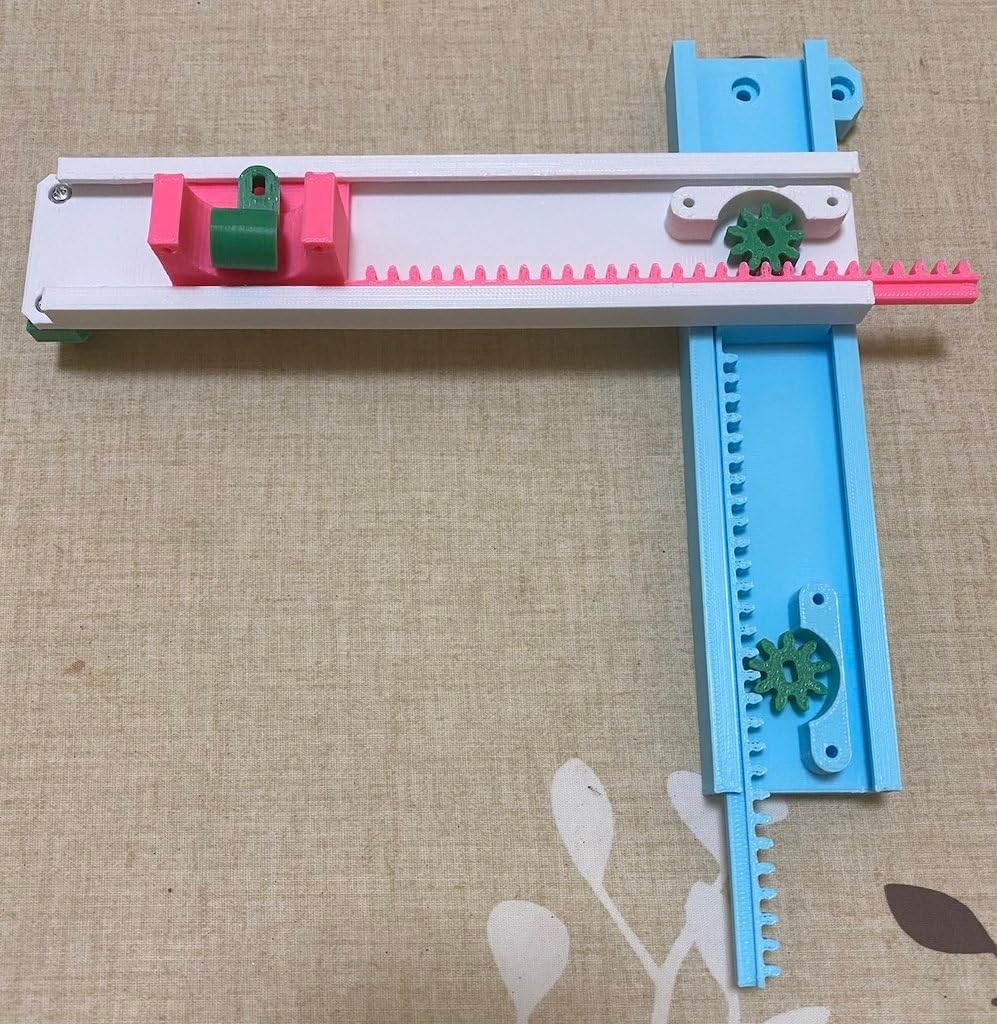

• Durable and lightweight 3D printed frame
• Precision XY-axis motion for accurate writing and drawing
• Pen lift mechanism for automatic writing operations
• Suitable for learning CNC programming and G-code
• Compatible with commonly used open-source CNC control software
• Easy-to-assemble modular design
• Perfect for educational, hobby, and engineering applications
• Reusable platform for experimentation and upgrades

Specifications

Package Includes

• 3D Printed Frame Parts
• Stepper Motors
• Servo Motor for Pen Lift
• Controller Board
• Motor Driver Module
• Timing Belts and Pulleys
• Linear Guide Components
• Connecting Wires
• USB Cable (if included in your kit)
• Nuts, Bolts, Screws, and Mounting Hardware
• Assembly Accessories

Note: Pen, power adapter, and computer are not included unless specified in the selected product variant.

Applications

• CNC Learning Projects
• Engineering and Diploma Projects
• STEM Education
• Science Fair Demonstrations
• Handwriting and Drawing Automation
• G-code Programming Practice
• Robotics and Mechatronics Experiments
• Prototype Development
• Educational Laboratory Activities

Why Choose This Kit?

The Mini CNC Plotter DIY Kit is an excellent educational tool for understanding CNC machines, stepper motor control, motion systems, and automation. With all major mechanical and electronic components included, users can assemble, program, and operate their own writing machine while gaining practical experience in electronics, programming, and mechanical design.

Ideal For: Engineering Students • STEM Labs • Schools & Colleges • Robotics Clubs • Makers • DIY Enthusiasts • Science Project Builders
