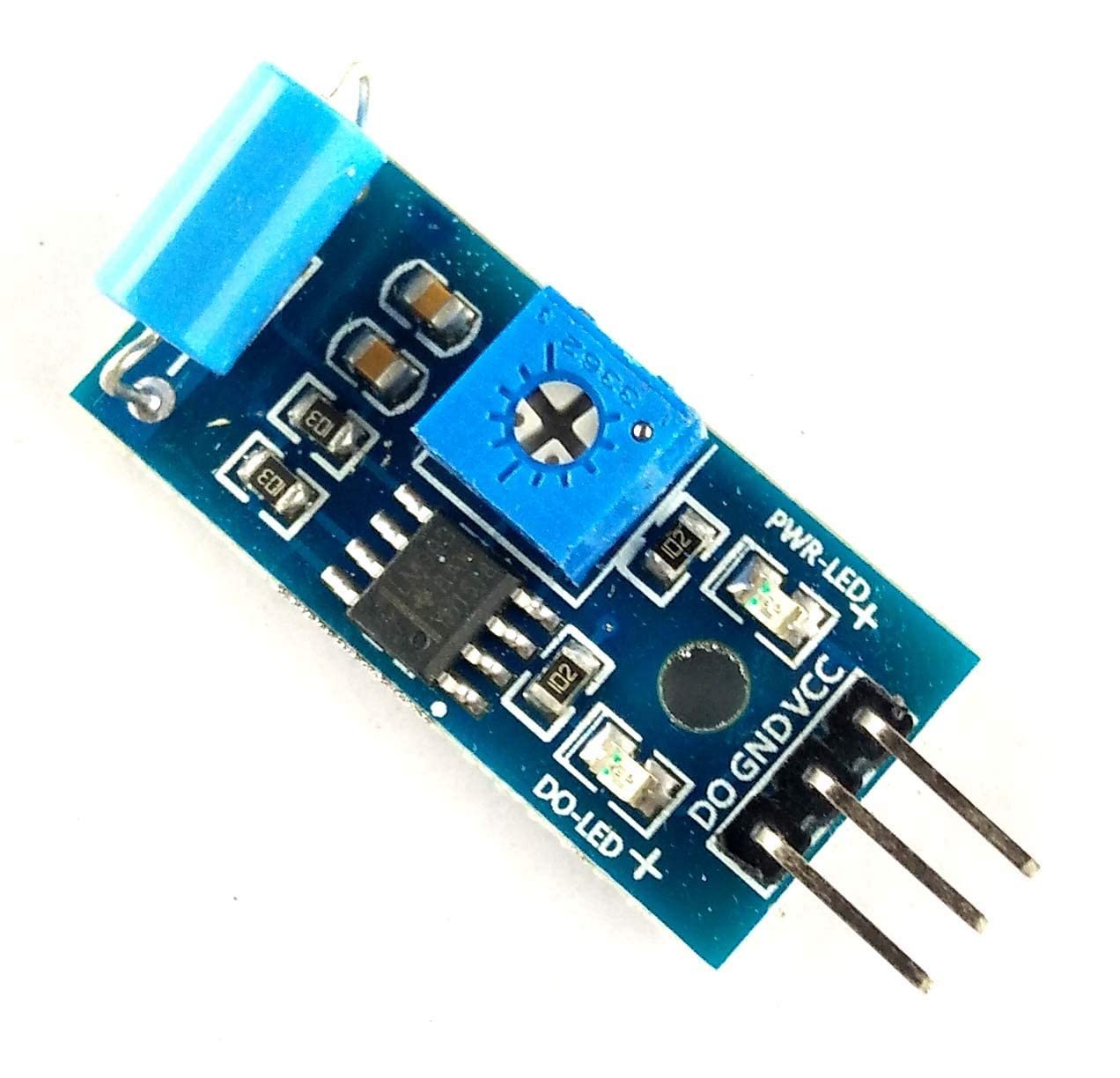

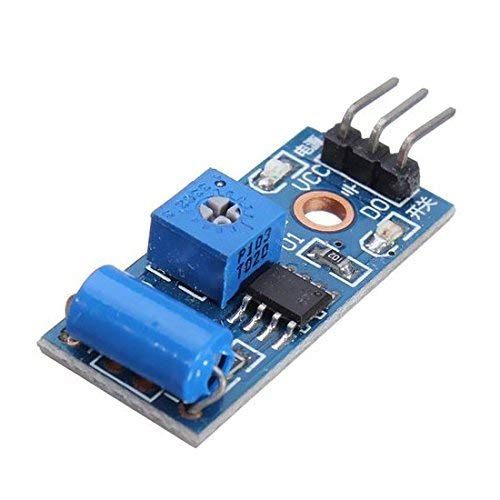

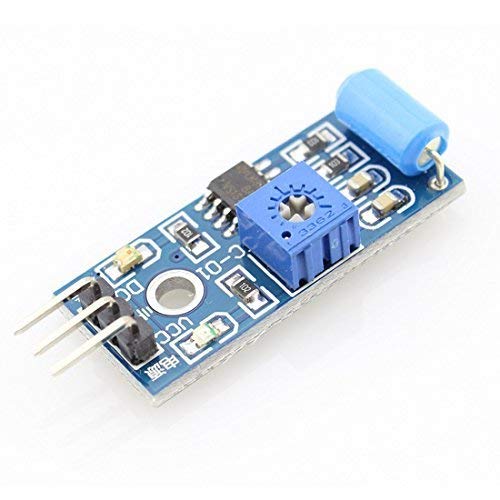

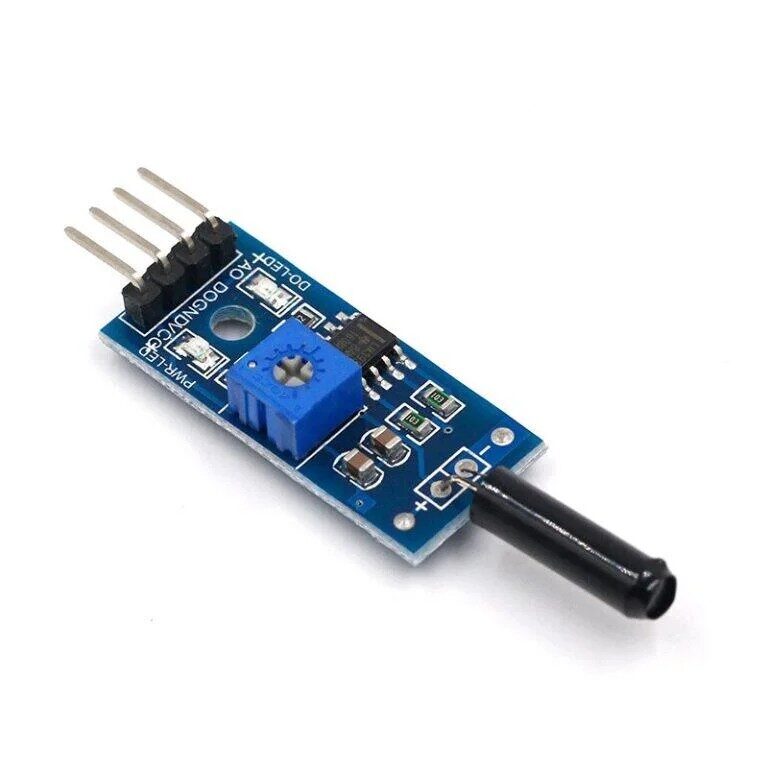

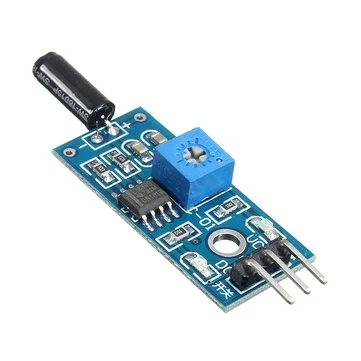

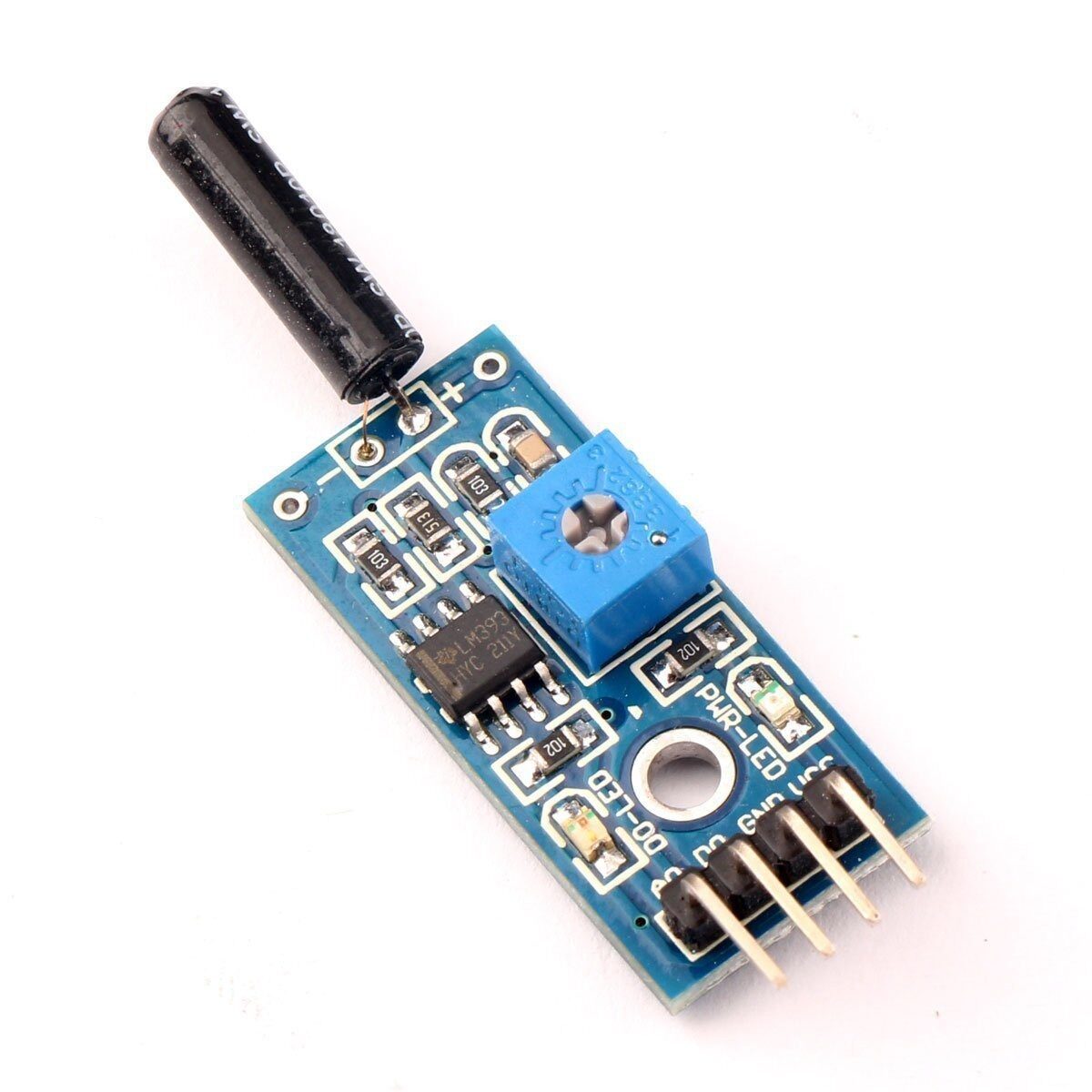

Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino

• The Tilt Sensor Vibration Alarm Module is designed for Arduino and comes with all the necessary components for immediate use. Once activated, it can be attached to any object to monitor its tilt, providing a digital output that simplifies the process of determining the object’s position.
• This module utilizes either the SW-460D or SW-520D tilt sensors, which operate on a ball-rolling mechanism rather than Mercury.
• It features an M3 mounting hole for easy attachment and a highly sensitive tilt switch, perfect for detecting orientation. Additionally, it includes power and status indicator LEDs.
• In its default state, the module emits a logic LOW signal, which switches to HIGH when a predefined tilt angle is exceeded.
• Testing shows a tilt angle detection range of 45 to 130 degrees, which may vary with angular velocity. The module can also function as a vibration sensor.
• Compatible with various microcontrollers with digital inputs, including the 8051, PIC, SK40C, SK28A, and SKds40A, as well as the Arduino series, this module enhances tilt detection capabilities. It can also be connected to a relay module to operate as a tilt switch.

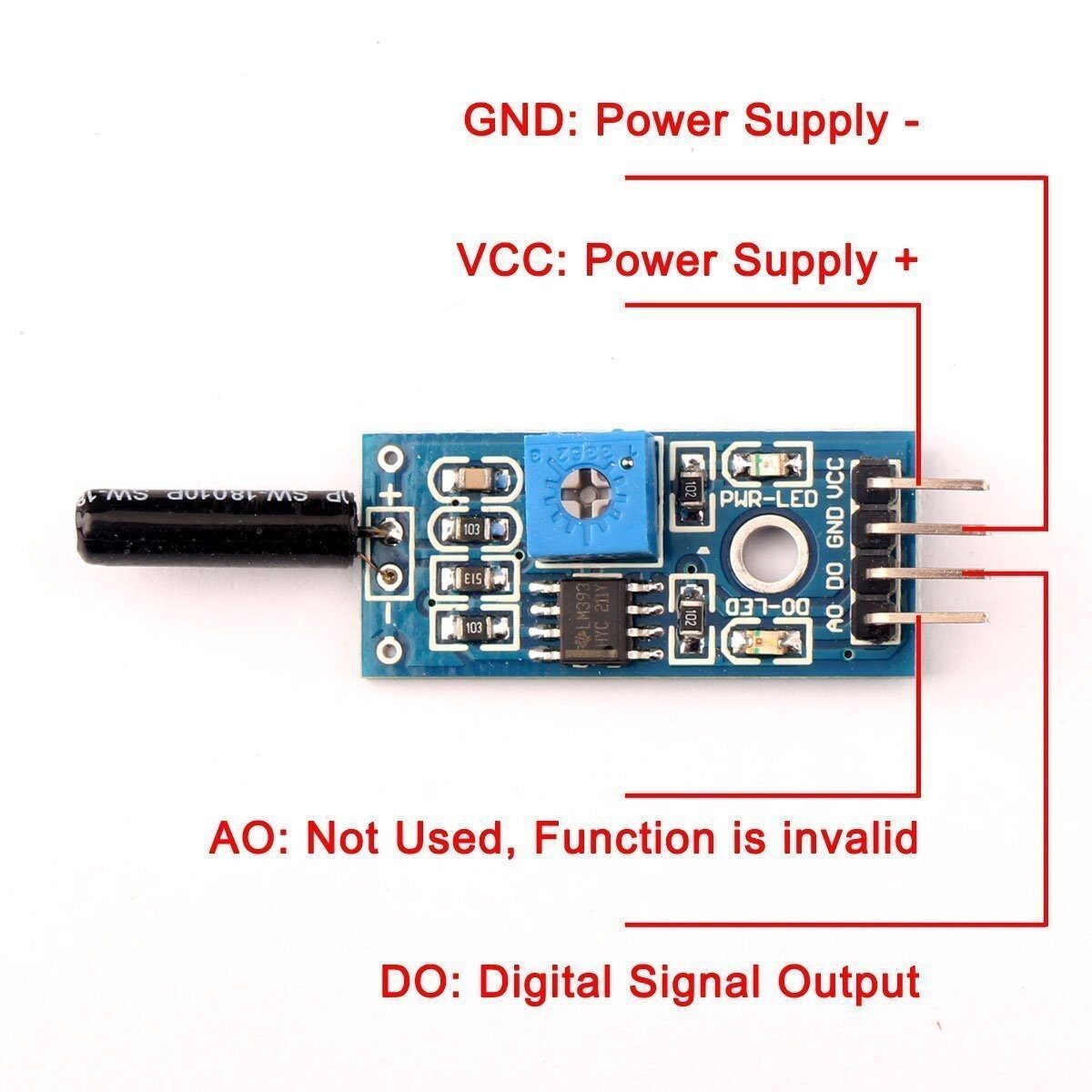

Pin Connection:

1. VCC = 5V
2. GND = 0V.
3. DO = digital output from module

Features

• Multiple axes measurement
• High resolution and precision
• Easy to use and  mount on any object
• Low power consumption
• Cost-effective and compact size
• Digital output

Application

• Tilt sensing for remote control devices
• An automatic rotating display like in phone and tablet
• Aircraft to indicate the position of aircraft with respect to the earth
• Gaming devices
• Digital cameras and other consumer electronics

Specification:
