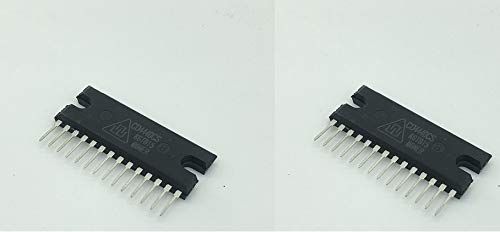

IC 4440/CD4440CS,6W 2-Channel, Bridge 19W Power Amplifier,TO-220,14 PIN PACK OF 1PCS

Product Features:

1. 2-Channel Bridge Amplifier: The IC 4440 is a 2-channel bridge amplifier. This means it can drive two speakers in a bridge configuration, doubling the power output compared to a standard non-bridged amplifier, making it suitable for delivering higher output power to speakers.

2. Power Output:

   • The amplifier delivers 6W of output power per channel at a standard supply voltage of 12V, which is ideal for driving small speakers or low-power audio systems.
   • In a bridge configuration, the total power output can reach 19W, providing better efficiency and higher sound quality, especially in mid-power audio systems.

3. Wide Voltage Range: This IC operates with a typical supply voltage of 12V, which is common in various audio and DIY electronics projects, making it compatible with a wide range of systems.

4. Low Total Harmonic Distortion (THD): The IC 4440 is designed to provide low total harmonic distortion, ensuring that the audio output remains clear and crisp, even at higher output levels.

5. TO-220 Package: The IC is housed in a TO-220 package, which is known for its excellent thermal management and reliability. This packaging allows the IC to dissipate heat efficiently, ensuring stable operation over time. The 14-pin configuration provides easy integration into standard circuit boards.

6. Compact and Durable: Despite its powerful output, the IC 4440 is compact and durable, making it well-suited for portable audio amplifiers, radios, and other devices where space is limited but high power is required.

7. Simple Integration: The 14-pin pinout makes it easy to integrate the IC into various audio circuit designs. Its robust design makes it a reliable option for engineers, hobbyists, and audio enthusiasts.

8. Overcurrent and Overheating Protection: The IC includes built-in protection against overcurrent and overheating, safeguarding your circuit from potential damage during high-load or fault conditions.

Applications:

• Audio Amplifiers: Perfect for driving small speakers in audio systems, such as portable speakers, desktop audio systems, and home audio setups.
• DIY Electronics Projects: Commonly used in DIY audio amplifier projects and other audio-related electronics.
• Public Address Systems: Suitable for amplifying audio signals in low-power PA systems.
• Home Theater Systems: Can be used to power audio channels in home theater systems, especially for small to medium setups.
• Television and Radio Equipment: Ideal for providing audio amplification in radio and TV receivers or broadcast equipment.
