AUTOBOTIX drv8833 motor driver
SKU:Key Features
-
Dual H-Bridge Motor Driver – Control 2 DC motors or 1 stepper motor simultaneously.
-
Wide Voltage Range – Supports motor supply from 2.7V to 10.8V, ideal for battery-powered applications.
-
High Current Capability – Provides up to 1.5A continuous current and 2A peak per motor channel.
-
PWM Speed Control – Compatible with PWM signals from microcontrollers for precise speed control.
-
Low On-Resistance MOSFETs – Ensures higher efficiency and reduced power loss.
-
Compact & Lightweight Design – Perfect for small robotics and embedded projects.
-
Low Power Sleep Mode – Reduces power consumption during standby.
-
Built-in Protection – Includes overcurrent protection, thermal shutdown, and undervoltage lockout for safer operation.
Technical Specifications
-
Driver IC: DRV8833
-
Motor Supply Voltage: 2.7V – 10.8V
-
Continuous Current: 1.5A per channel
-
Peak Current: 2A per channel
-
Motor Support: 2 DC Motors / 1 Stepper Motor
-
Control Interface: Digital Logic / PWM
-
Logic Compatibility: 3.3V and 5V systems
-
Operating Temperature: -40°C to +85°C
-
Protection: Overcurrent, Overtemperature, Undervoltage Lockout
Applications
The AUTOBOTIX DRV8833 Motor Driver Module is suitable for a wide range of electronics and robotics applications, including:
-
Arduino and microcontroller robotics projects
-
Gesture-controlled robots and smart vehicles
-
Line follower and obstacle-avoiding robots
-
DIY RC cars and robotic platforms
-
Smart automation systems
-
Educational STEM electronics kits
-
Small CNC and stepper motor control systems
Why Choose AUTOBOTIX DRV8833 Motor Driver?
AUTOBOTIX ensures high-quality components designed for makers, students, and robotics enthusiasts. The module provides stable performance, easy interfacing with microcontrollers, and efficient motor control for modern DIY electronics projects.
With its compact design, powerful performance, and built-in safety features, the AUTOBOTIX DRV8833 Motor Driver Module is an essential component for anyone working with robotics, automation, and embedded systems.
₹70.00 ₹349.00

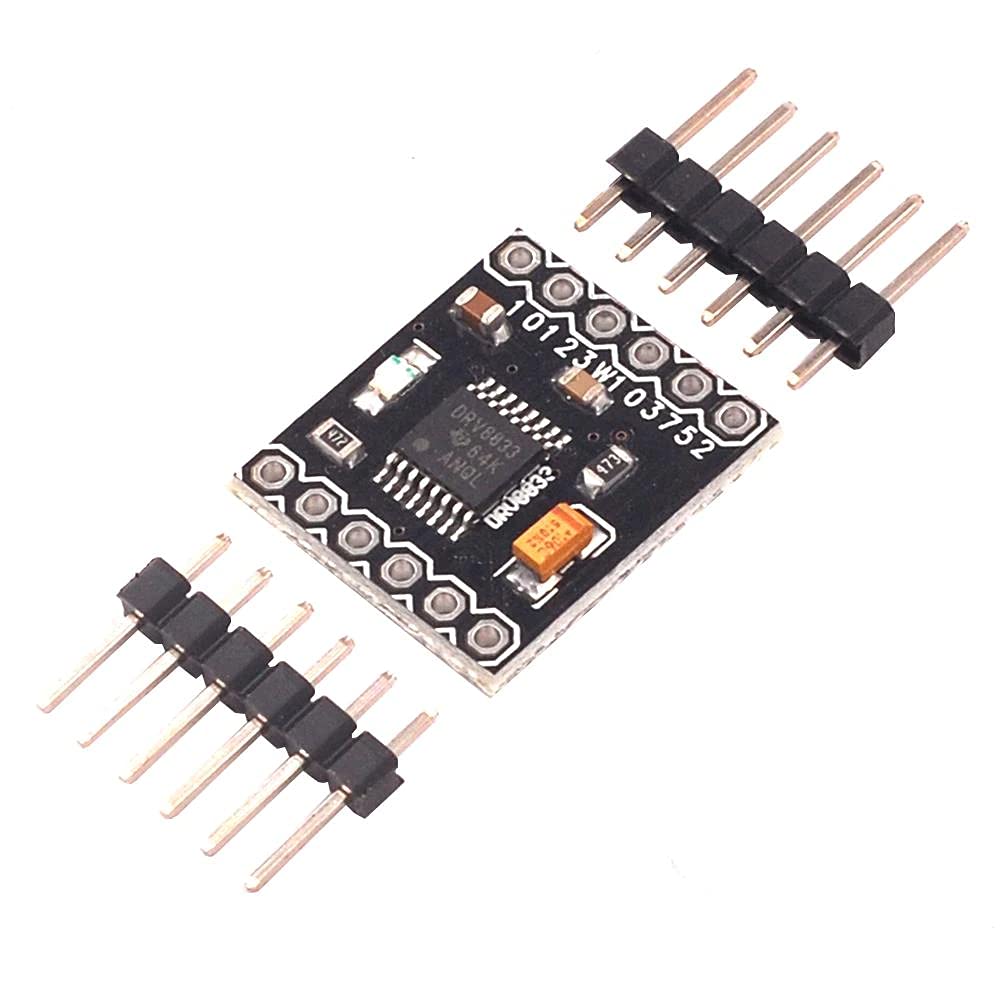

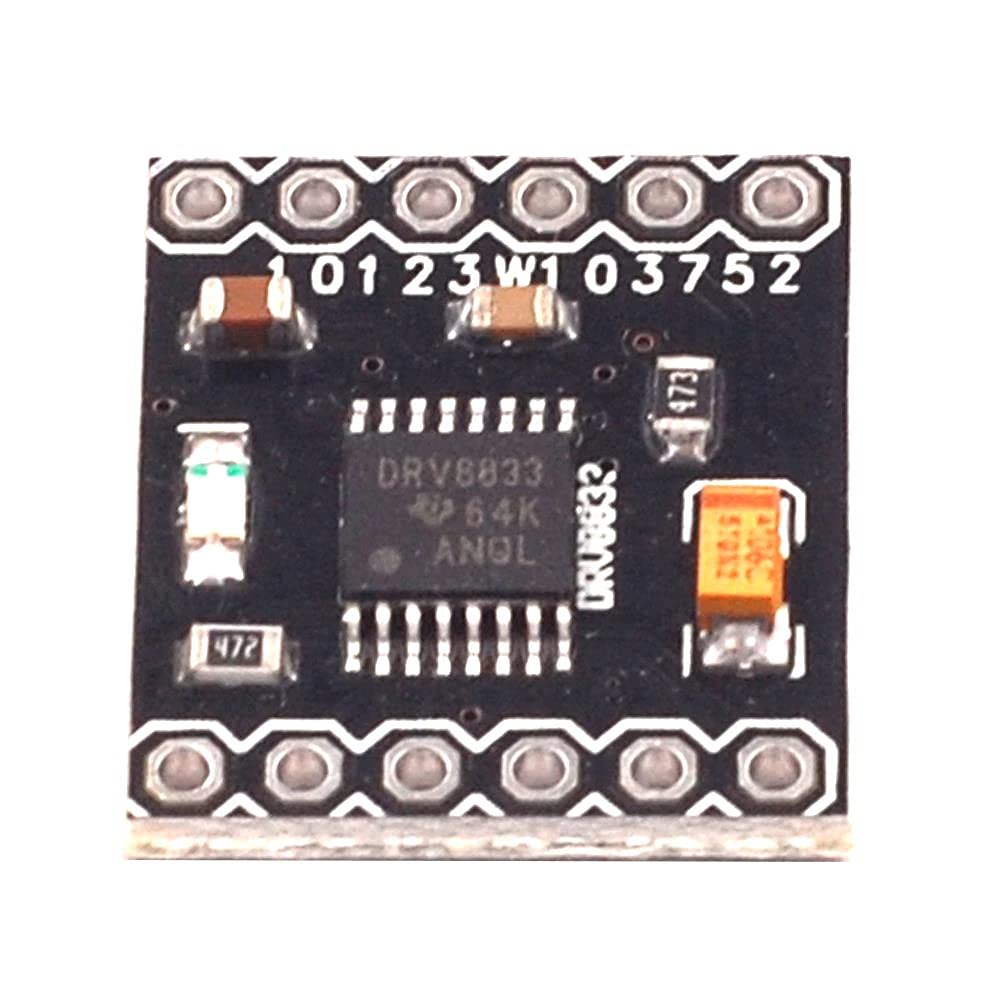

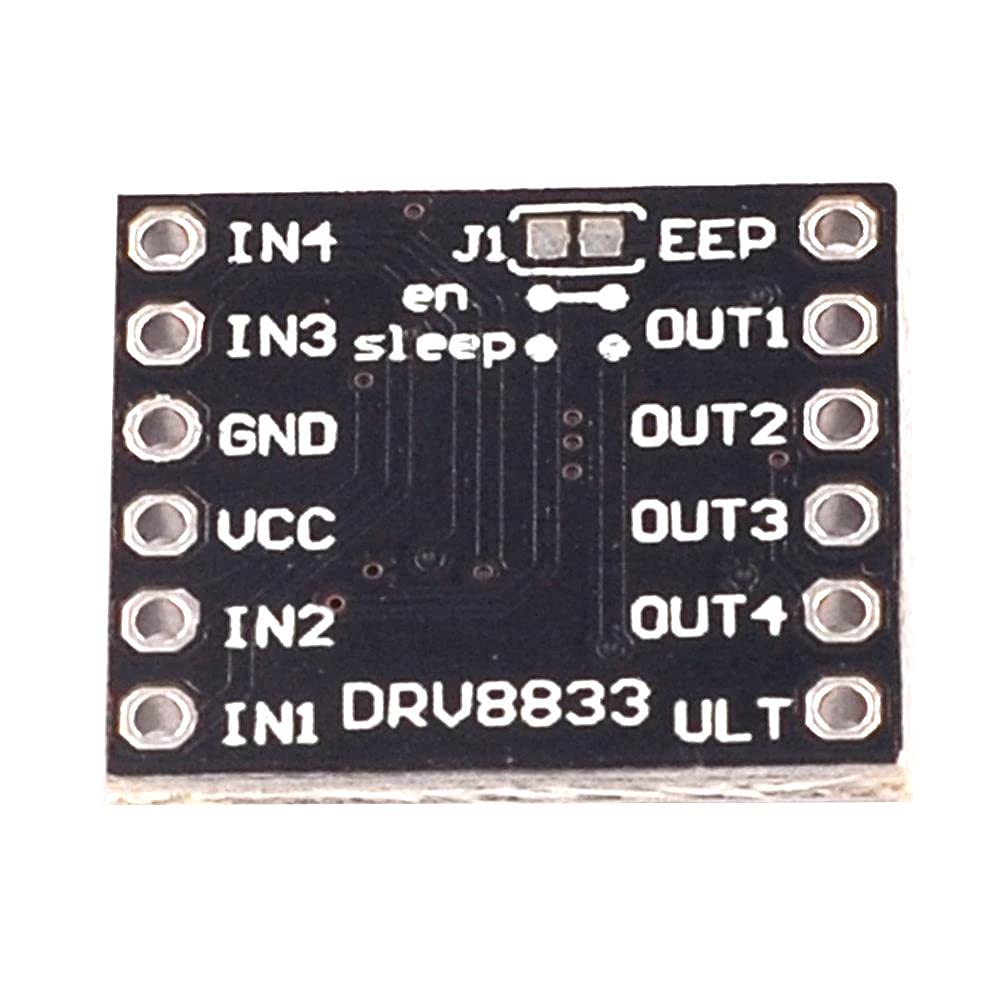

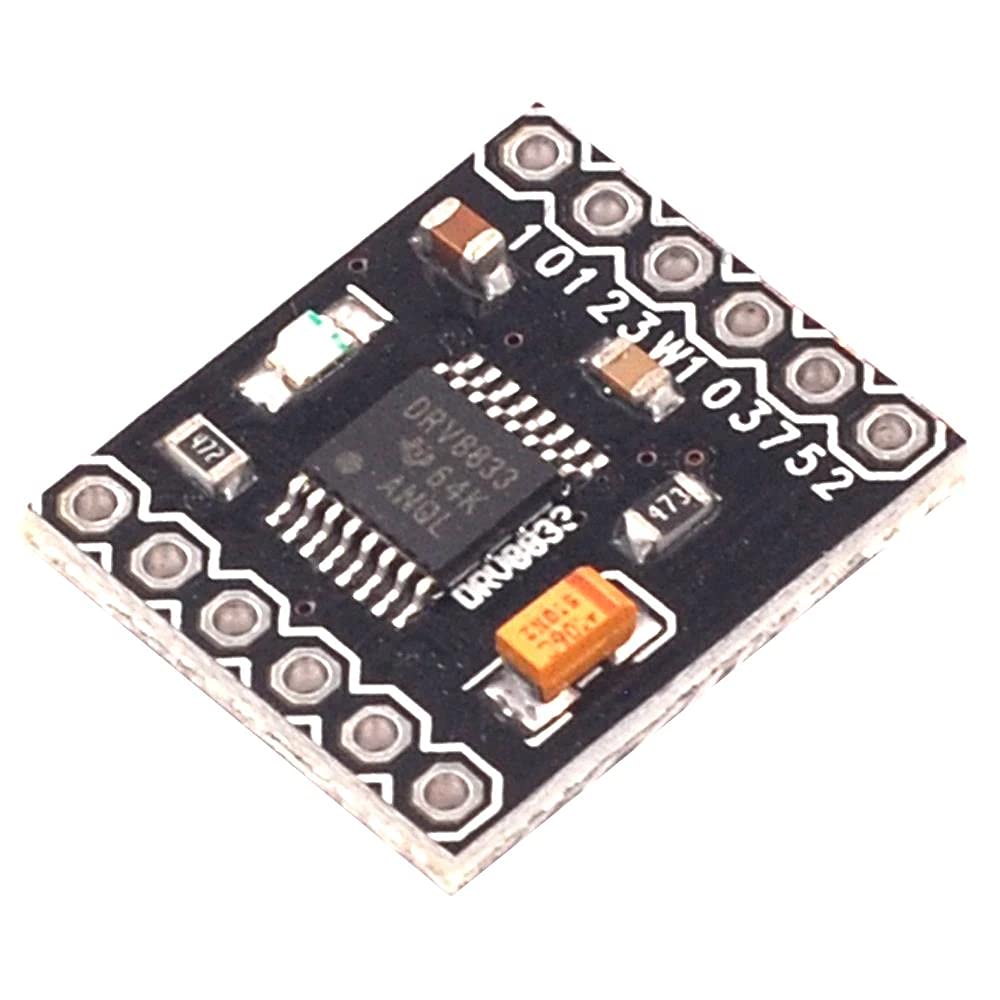

AUTOBOTIX DRV8833 Motor Driver Module – Dual H-Bridge DC Motor Driver for Arduino, Robotics & DIY Projects
The AUTOBOTIX DRV8833 Motor Driver Module is a compact and efficient dual H-bridge motor driver designed for controlling DC motors and stepper motors in robotics, automation, and embedded electronics projects. Based on the powerful DRV8833 motor driver IC from Texas Instruments, this module offers reliable motor control with low power consumption and high efficiency, making it an excellent choice for Arduino, ESP32, Raspberry Pi, and other microcontroller platforms.
This driver module is capable of controlling two DC motors independently or one bipolar stepper motor, providing smooth bidirectional control and PWM speed regulation. With a wide operating voltage range and compact design, it is ideal for battery-powered robots, RC vehicles, smart automation systems, and educational electronics kits. The module integrates advanced MOSFET H-bridge circuitry that allows precise control of motor direction and speed while minimizing power loss and heat generation.
The AUTOBOTIX DRV8833 module is widely used in robotics projects where space, efficiency, and reliability are important. Compared to older drivers like L298N, the DRV8833 offers better efficiency, lower voltage drop, and smaller size, making it perfect for compact DIY robots and IoT devices.
| Weight | 0.10 kg |
|---|---|
| Dimensions | 11 × 11 × 11 cm |
