MP3 Bluetooth 4.1 Decoder Board
MP3 Bluetooth 4.1 Decoder Board - Image 2
MP3 Bluetooth 4.1 Decoder Board - Image 3
MP3 Bluetooth 4.1 Decoder Board - Image 4
MP3 Bluetooth 4.1 Decoder Board - Image 5
MP3 Bluetooth 4.1 Decoder Board - Image 6
,

MP3 Bluetooth 4.1 Decoder Board

SKU:
Add to wishlist
Compare

Operating Voltage: 3.7 – 5VDC

SNR: 90dB

Support Profile: A2DP / AVCTP / AVDTP / AVRCP / HFP

₹90.00 ₹210.00

Compare

MP3 Bluetooth 4.1 Decoder Board

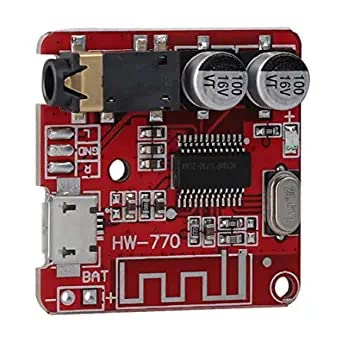

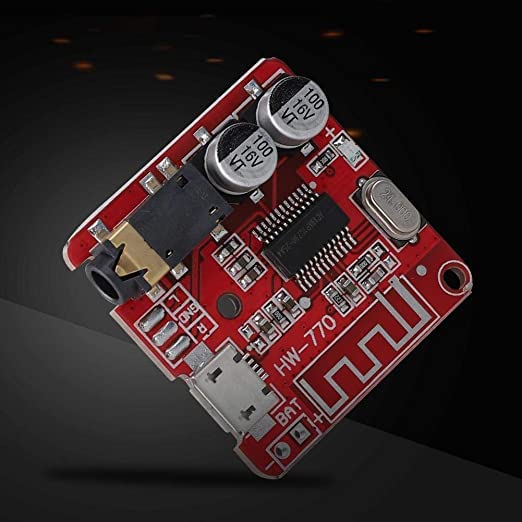

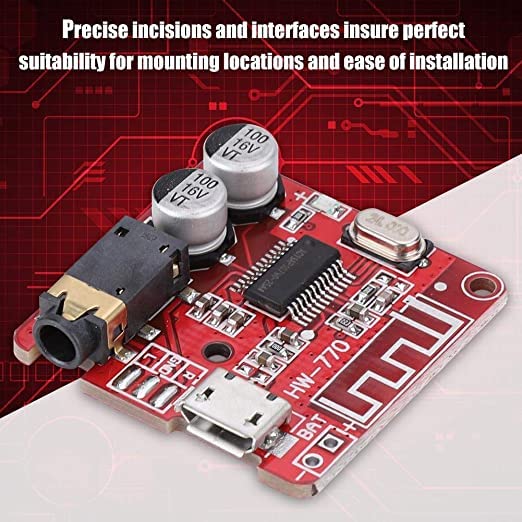

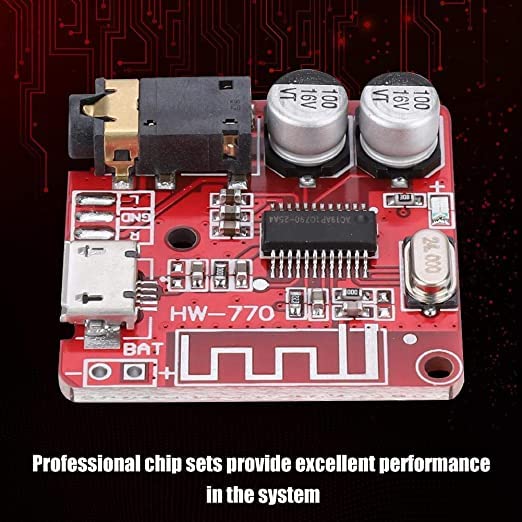

This MP3 decoder board features an integrated Bluetooth 4.1 receiver. It can be powered through a battery terminal or via the onboard micro USB port. The board’s output includes solder pads for the speaker’s right, left, and ground wires, as well as a 3.5 mm audio jack to connect the speakers.

Features:

  1. USB Powered
  2. LED Indicator
  3. 3.5 mm Stereo Audio Interface
  4. 3.7 – 5V Supply Pad

Specifications:

DNR 91dB
Support Profile A2DP / AVCTP / AVDTP / AVRCP / HFP
Crosstalk -86dB
Maximum Range 15m
Length (mm): 30
Width (mm): 30
Height (mm): 7
Weight (g): 2
Categories: , Tags: , , , ,
Weight 0.35 kg
Dimensions 12 × 10 × 5 cm
