5V 2A Wireless Power Supply Transmitter Receiver Charging Coil Module
SKU:Out of stock
Model: XKT-412.
Input Voltage: 12V.
Output Voltage: 5V.
Operating Current: 1.2-2 A.
Receive Coil: 3mm, the receiver output 5V / 1A current
Normal Use Distance: 2 ~ 10mm
Operating Current: 1.2-2 A.
₹505.00 ₹999.00
Out of stock
Compare

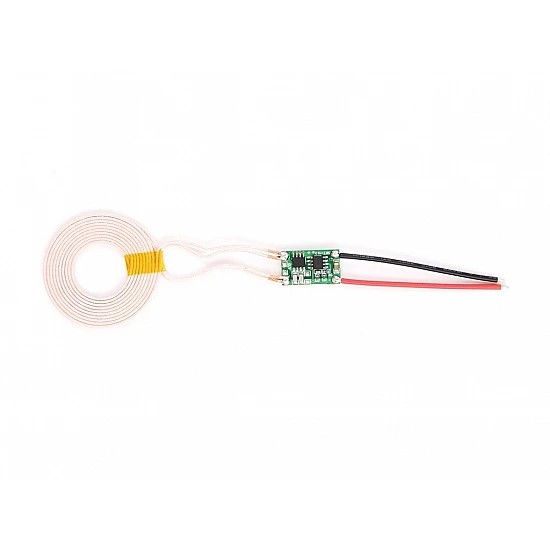

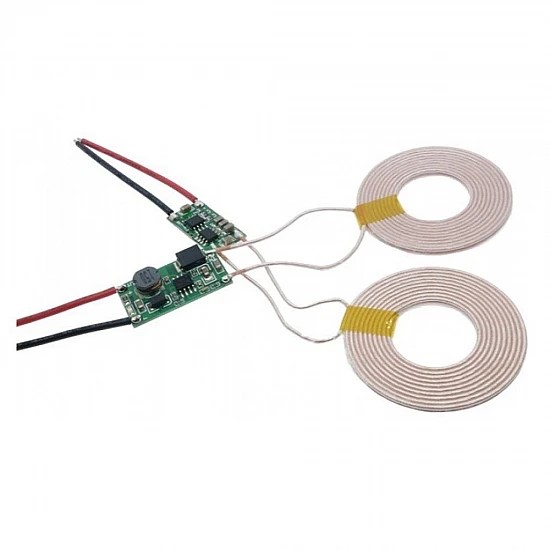

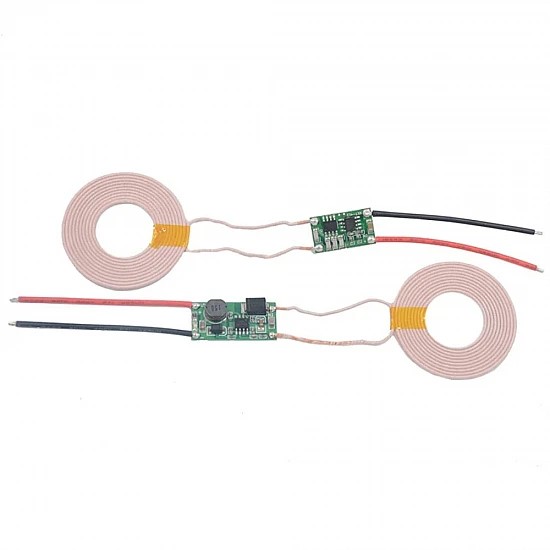

5V 2A Wireless Power Supply Transmitter Receiver Charging Coil Module
The 5V 2A Large Current Wireless Charger Module Transmitter Receiver Charging Coil Module is a wireless power supply device for various small electronic products. It has the advantages of small size, easy use, high efficiency and low cost.
It can be used to charge mobile phones, game consoles, tanks, MP3, MP4, adult products, digital cameras, electric shavers, machine learning devices, health care products and more without using wires. This makes the products more sealed, waterproof and dustproof, which improves their durability and convenience.
Circuit Diagram:
specification-
| Model | XKT-412. |
|---|---|
| Input Voltage | 12VDC |
| Output | 5V / 1A current |
| Normal Use Distance | 2 ~ 10mm |
| Operating Current | 1.2-2 A. |
| Tx/Rx Coil Dimensions | Diameter 43mm, Inner diameter 20mm, |
| Coil Wire Thinkness | 2.3mm |
| The transmitting module size | 18mm*8.5mm*15mm |
| The receiving module size | 10mm*25mm*3mm |
| Shipping Weight | 0.035 kg |
| Shipping Dimensions | 15 × 10 × 8 cm |
| Weight | 0.5 kg |
|---|---|
| Dimensions | 11 × 3 × 1 cm |
