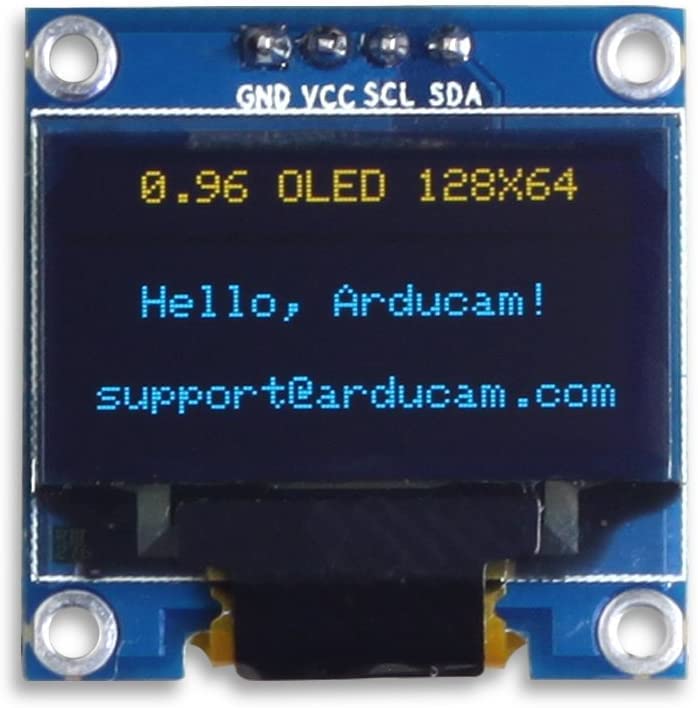

D1286464 Rsi 0.96 Inch 4pin Iic, I2c Oled Display Module for Arduino, Blue AB0162

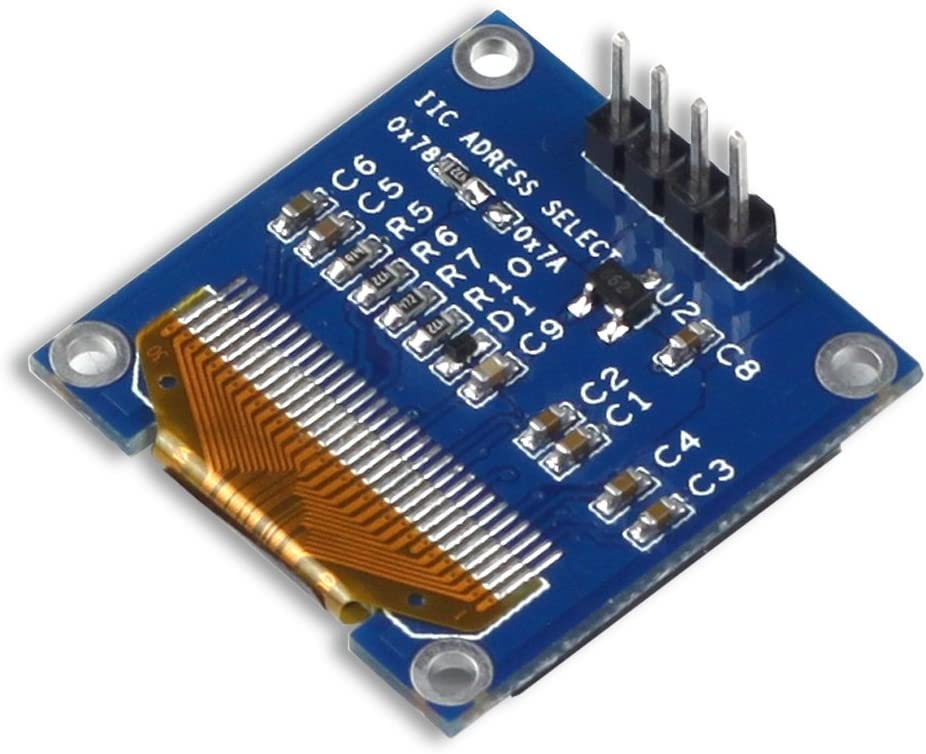

D1286464 Rsi 0.96 Inch 4pin Iic, I2c Oled Display Module for Arduino, Blue AB0162 - Image 2
D1286464 Rsi 0.96 Inch 4pin Iic, I2c Oled Display Module for Arduino, Blue AB0162 - Image 3
D1286464 Rsi 0.96 Inch 4pin Iic, I2c Oled Display Module for Arduino, Blue AB0162 - Image 4
D1286464 Rsi 0.96 Inch 4pin Iic, I2c Oled Display Module for Arduino, Blue AB0162 - Image 5
,

D1286464 Rsi 0.96 Inch 4pin Iic, I2c Oled Display Module for Arduino, Blue AB0162

SKU: AB0162
Availability:

6 in stock
Add to wishlist
Compare

Features

  • 0.96-inch blue OLED display
  • 128 × 64 pixel high-resolution output
  • IIC/I2C interface for simplified wiring
  • Requires only 4 connection pins
  • High contrast and wide viewing angle
  • No backlight required for operation
  • Low power consumption
  • Supports text, graphics, symbols, and custom images
  • Compatible with popular microcontroller platforms

Specifications

  • Product Code: AB0162
  • Display Size: 0.96 Inch
  • Display Type: OLED
  • Display Color: Blue
  • Resolution: 128 × 64 Pixels
  • Communication Interface: IIC / I2C
  • Pins: VCC, GND, SDA, SCL
  • Operating Voltage: 3.3V – 5V DC
  • Driver IC: SSD1306 (or compatible)
  • Viewing Angle: Wide Angle

Applications

  • Arduino Projects
  • IoT Devices
  • Sensor Data Display
  • Smart Home Systems
  • Portable Electronics
  • Robotics Projects
  • Battery Monitoring Systems
  • Embedded System Interfaces

₹214.00 ₹320.00

6 in stock

Compare

The D1286464 RSI 0.96 Inch OLED Display Module (AB0162) is a compact and high-contrast display solution featuring a 128×64 pixel resolution and IIC/I2C communication interface. With its bright blue OLED display, this module delivers sharp text, graphics, and icons without requiring a backlight, ensuring low power consumption and excellent visibility from various viewing angles.

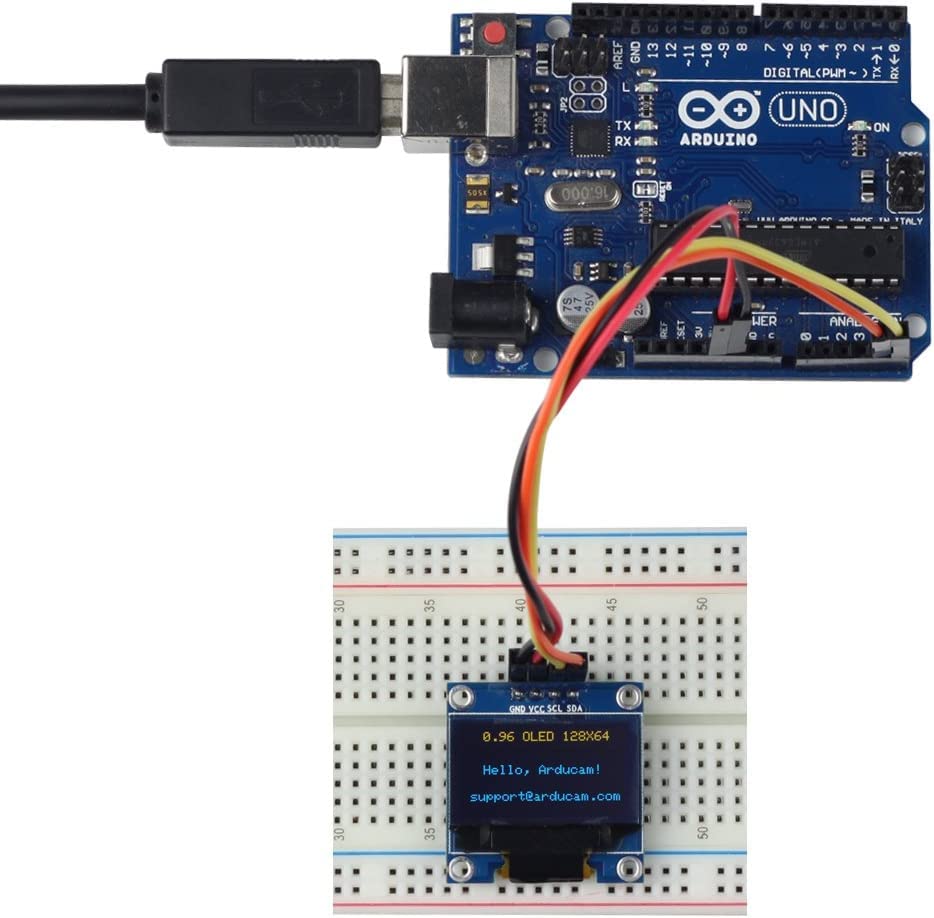

Using only four pins (VCC, GND, SDA, and SCL), the module is easy to interface with Arduino, ESP8266, ESP32, Raspberry Pi, STM32, and other microcontroller platforms. Its compact size and clear display make it ideal for portable electronics, IoT devices, sensor monitoring systems, and DIY electronics projects.

SKU: AB0162 Categories: , Tags: , , , ,
Weight 0.35 kg
Dimensions 12 × 10 × 5 cm
