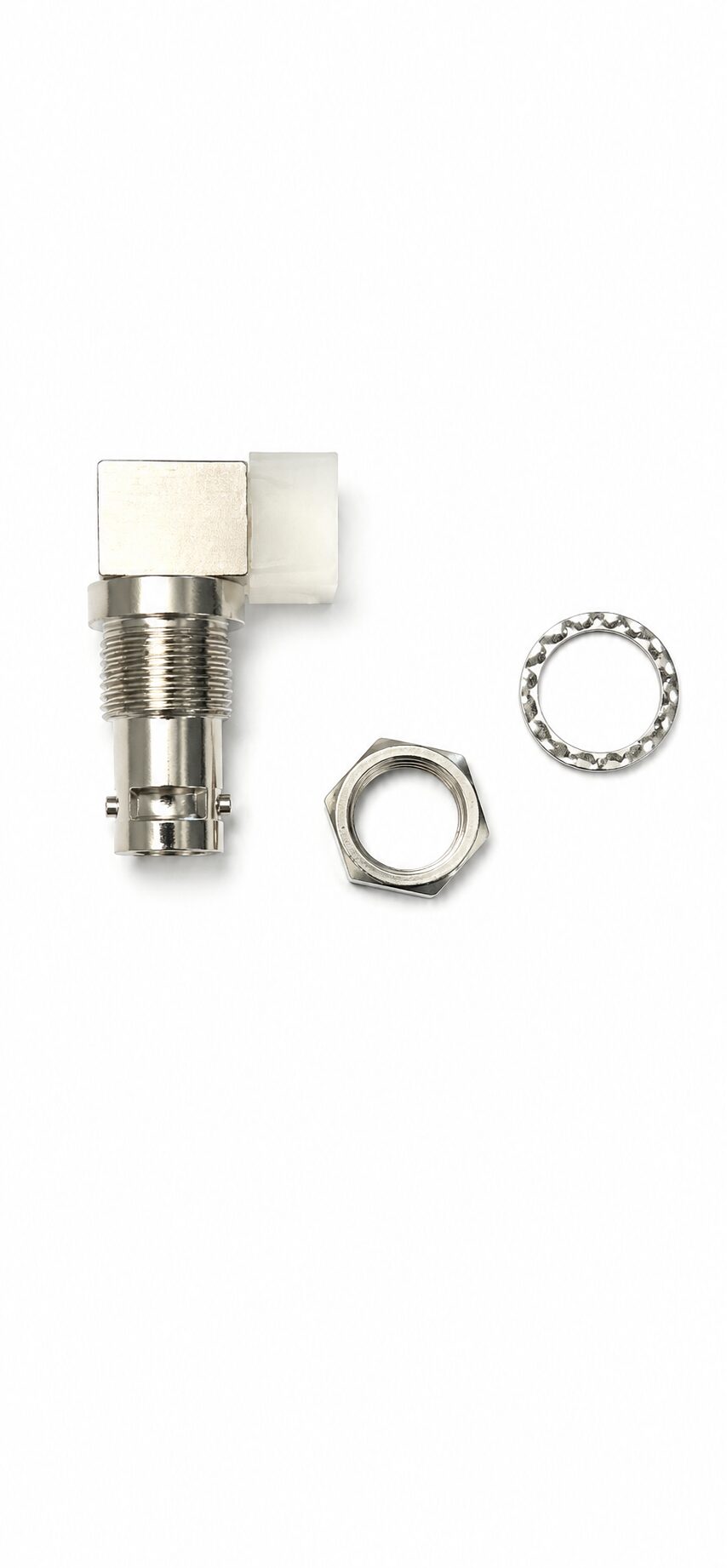

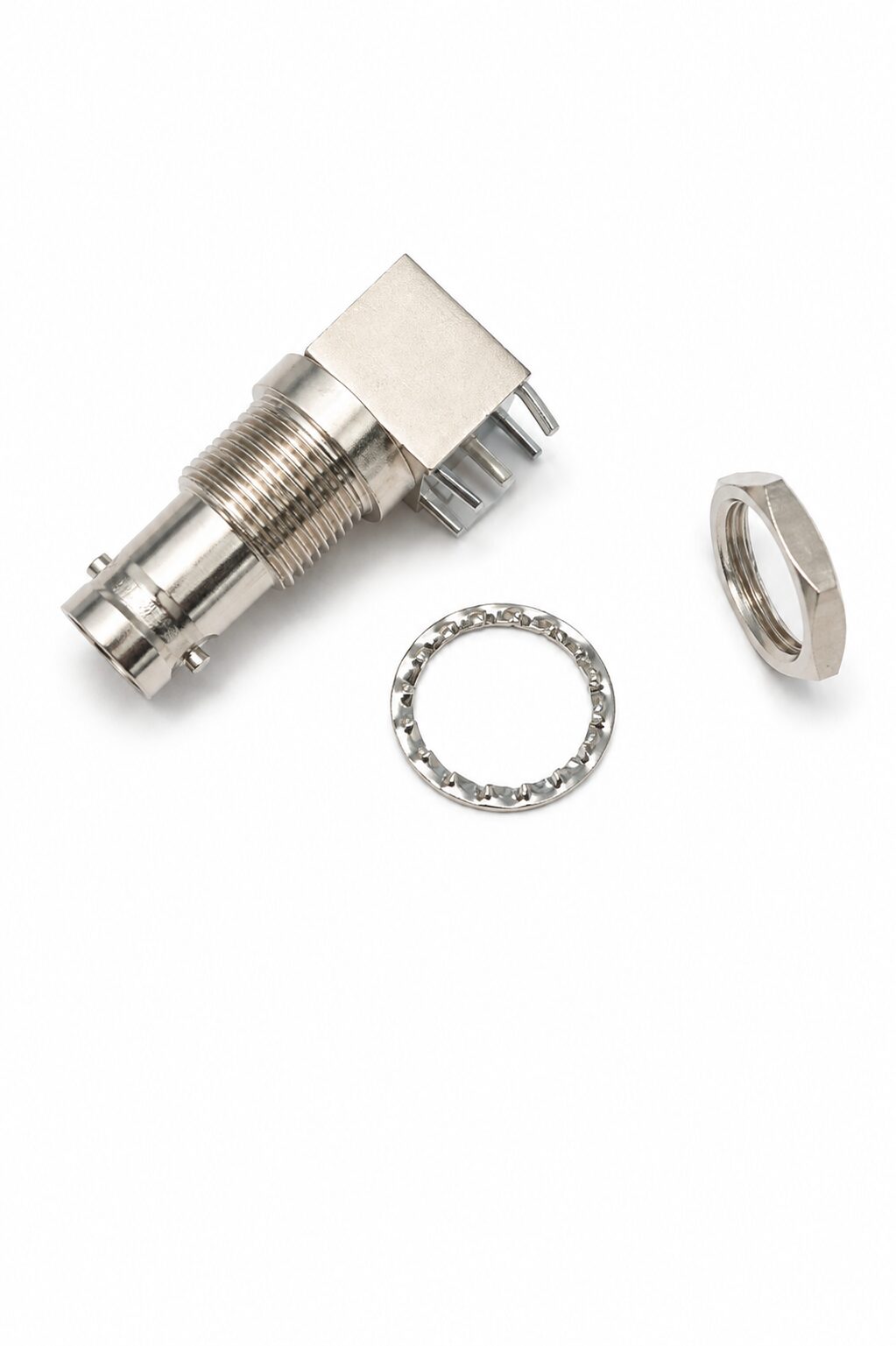

BNC Female Bulkhead Coaxial Connector Right Angle Through Hole For PCB Mount
SKU:₹175.00 ₹299.00
BNC Female Bulkhead Coaxial Connector Right Angle Through Hole For PCB Mount
Description: BNC Connector, Female/Jack,RF Connector,Angled/90, PCB Mount,Through Hole
Product features:
- BNC Connector, Female/Jack,RF Connector, Angled/90, PCB Mount,Through Hole;
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- From the OEM Original Factory, same quality with much better price.
Appliance:Â Antennas, Cable Assembly, Automotive, Radios,Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Medical Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
BNC Female Bulkhead Coaxial Connector Right Angle Through Hole For PCB Mount Specification
- Usage & Applications
- PCB, Signal Transmission, Coaxial Cable Interface, Data Communication
- Rated Temperature
- -40C to +85C
- Armored Material
- N/A (not applicable for connector only)
- Weight
- Approx. 10g
- Conductor Type
- Solid
- Diameter
- Panel hole: 8 mm (standard BNC bulkhead)
- Core Number
- Single Core
- Tensile Strength
- 50N (center contact retention)
- Locking Type
- Bayonet Coupling
- Core Material
- Brass
- Cable Type
- Coaxial (connector without cable)
- Operating Temperature
- -40C to +85C
- Install Type
- Panel Mount / PCB Through Hole
- Features
- Right Angle, Bulkhead, Through Hole, Secure Connection, PCB Mountable
- Conductor Shape
- Round
- Impedance
- 50 Ohms (also available in 75 Ohms on request)
- Dielectiric Strength
- 1000V rms @ 60Hz, 1 min
- Number of Conductor
- 1
- Insulation
- PTFE
- Product Type
- BNC Bulkhead Connector, Female, Right Angle, Through Hole
- Length
- Standard PCB mount length (approx. 22 mm overall)
- Voltage
- Maximum 500V rms
- Insulation Material
- PTFE (Polytetrafluoroethylene)
- Application
- PCB Mounting, RF Circuits, Test Equipment, Broadcast, Communication
- Conductor Material
- Brass (Gold or Silver Plated)
- Jacket Material
- None (Connector housing is metal, no external jacket)
- Storage Temperature
- -55C to +125C
- Connector Color
- Silver/Nickel Plated
- Shield Material
- Nickel Plated Brass
- Jacket Color
- N/A (no external jacket)
- Dimension (L*W*H)
- Approx. 22mm x 15mm x 14mm
- Material
- Nickel Plated Brass, PTFE Insulator
- Color
- Silver
- Size
- Standard BNC dimensions
- Termination Type
- Solder
- Waterproof Level
- Not rated (indoor use only)
- VSWR
- 1.3:1 (up to 1 GHz)
- Body Plating
- Nickel
- Insulation Resistance
- 5000 M
- Gender
- Female
- RoHS Compliance
- Yes
- Mating Cycles
- 500
- Contact Resistance
- Center 1.5m, Outer 1m
- Flammability Rating
- UL94 V-0
- Frequency Range
- DC-4 GHz
- Mounting Style
- Through Hole, PCB Right Angle
| Weight | 0.5 kg |
|---|---|
| Dimensions | 20 × 18 × 7 cm |
